Why Choose the Ilme CCMC0.5 Male Constantan Crimp Contact?

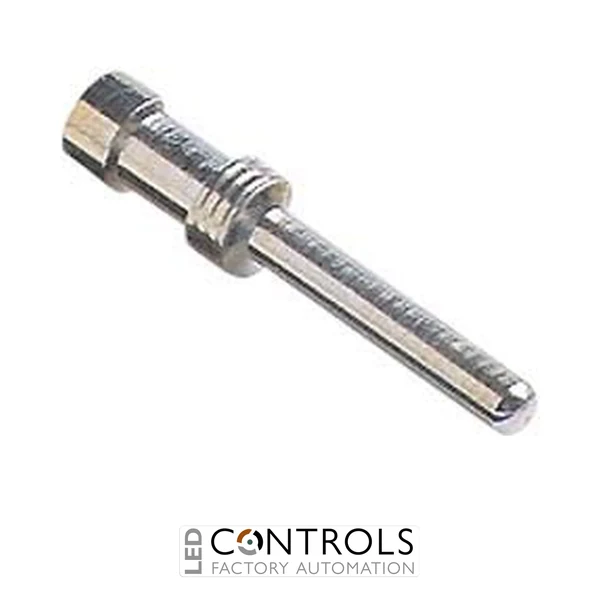

The Ilme CCMC0.5 is a specialist male turned constantan crimp contact from the Ilme CC series, designed for compatible Ilme industrial multipole connector inserts. Rated at 16 A, it is specifically designed for 0.5 mm² conductors and provides a dedicated contact solution for industrial thermocouple connections.
The CCMC0.5 is manufactured from constantan (Cu-Ni) rather than the plated copper-alloy construction used for standard power and control contacts. Ilme specifies its complementary constantan and iron CC contacts for Type J thermocouples in accordance with EN 60584-1, enabling appropriate thermocouple circuits to pass through detachable industrial multipole connector assemblies.
Designed for 0.5 mm² / 20 AWG conductors, the CCMC0.5 uses precision crimp termination and has a specified conductor stripping length of 7.5 mm. Ilme recommends using approved crimping tools for these contacts to achieve consistent conductor termination and reliable integration into compatible connector inserts.
Key Advantages
- Male constantan crimp contact designed for specialist thermocouple connections.
- 16 A rated current as part of the Ilme CC contact system.
- Designed specifically for 0.5 mm² / 20 AWG conductors.
- Constantan (Cu-Ni) contact material for appropriate Type J thermocouple circuits.
- Precision turned-contact construction provides a consistent mating interface.
- Crimp termination supports secure and repeatable cable assembly.
- Designed for compatible Ilme CC series multipole connector inserts.
Key Features
- Ilme CC series crimp contact.
- Male contact configuration.
- Turned constantan (Cu-Ni) construction.
- 16 A rated current.
- 0.5 mm² conductor cross-section.
- 20 AWG conductor size.
- 7.5 mm conductor stripping length.
- Designed for Type J thermocouple applications with the corresponding iron contact.
Reliable Constantan Contact for Type J Thermocouple Connections
Thermocouple measurement circuits require appropriate conductor and contact materials through their connection points. Ilme therefore provides dedicated constantan and iron CC series contacts for Type J thermocouple applications, allowing suitable temperature measurement circuits to be incorporated into detachable multipole industrial connector systems.
The CCMC0.5 provides the male constantan contact for 0.5 mm² conductors. When combined with the corresponding iron contact, compatible Ilme connector components and correctly prepared thermocouple wiring, it provides a practical and serviceable connection solution for industrial temperature measurement and process instrumentation.
Typical Applications
- Type J thermocouple connection circuits.
- Industrial temperature measurement systems.
- Process control and instrumentation equipment.
- Industrial machinery temperature monitoring.
- Compatible Ilme multipole connector assemblies.
- Pre-assembled thermocouple cable harnesses.
