Why Choose the ILME CDAF10 Female Insert?

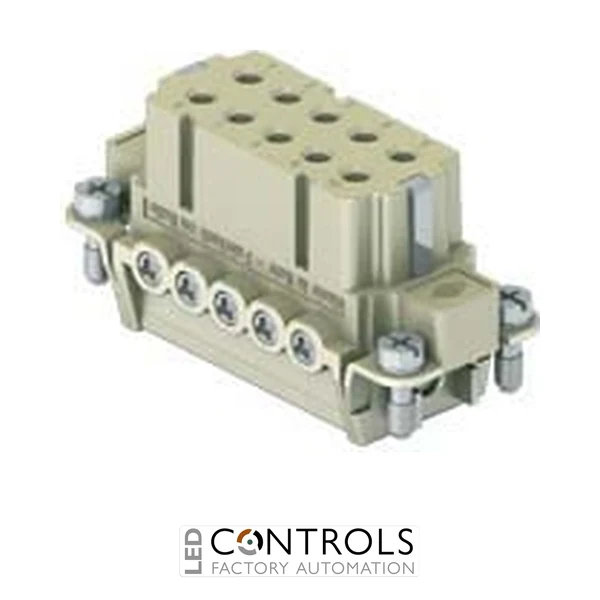

The ILME CDAF10 is a 10-pole + earth female connector insert designed for heavy-duty industrial multipole connections. Part of the ILME CDA series, it combines a compact 49.16 insert size with a rated current of 16 A, making it suitable for reliable power and control connections in machinery, automation and industrial equipment.
The CDAF10 uses screw-terminal connections, allowing conductors to be terminated directly without separate crimp contacts. Its configuration provides 10 numbered poles plus a protective earth (PE) connection, while the female contact arrangement is designed to mate with the corresponding compatible ILME male insert.
Engineered for installation in compatible ILME rectangular connector enclosures, the CDAF10 provides a robust and serviceable connection system for industrial environments. The combination of screw termination, clearly defined pole positions and protective-earth connectivity makes it a practical choice for machine builders, panel builders and maintenance engineers.
Key Advantages
- 10 poles + protective earth for multipole industrial connections.
- 16 A rated current for compatible power and control circuits.
- Female insert designed to mate with the corresponding male connector insert.
- Screw-terminal connection eliminates the need for separate crimp contacts.
- Compact 49.16 insert size for space-efficient connector assemblies.
- Designed for dependable use in ILME heavy-duty rectangular connector systems.
Key Features
- ILME CDA series connector insert.
- Female contact configuration.
- 10 poles + PE connection.
- 16 A rated current.
- Screw termination for field wiring.
- 49.16 insert size.
- Integrated protective-earth connection.
- Suitable for compatible ILME rectangular connector enclosures.
- Designed for industrial power and control connections.
- Serviceable screw connections simplify installation and maintenance.
- Suitable for machinery and automation connector assemblies.
- Part of ILME's heavy-duty multipole connector system.
Reliable Screw-Terminal Multipole Connectivity
Heavy-duty multipole connectors allow several electrical circuits to be combined into a single detachable industrial connection. This can simplify installation and maintenance compared with individually connecting multiple conductors whenever machinery, control equipment or modular assemblies need to be installed or serviced.
The ILME CDAF10 uses screw terminals so conductors can be connected directly to the insert without purchasing and installing individual crimp contacts. Its 10-pole + earth arrangement provides multiple circuit positions together with a dedicated protective-earth connection, making it well suited to professional machinery and industrial control installations.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Control-panel and machine interconnections.
- Material handling and conveyor systems.
- OEM electrical equipment.
- Industrial power and control wiring requiring detachable multipole connections.
