Why Choose the Ilme CDAF10X Female 10 Pole + Earth Insert?

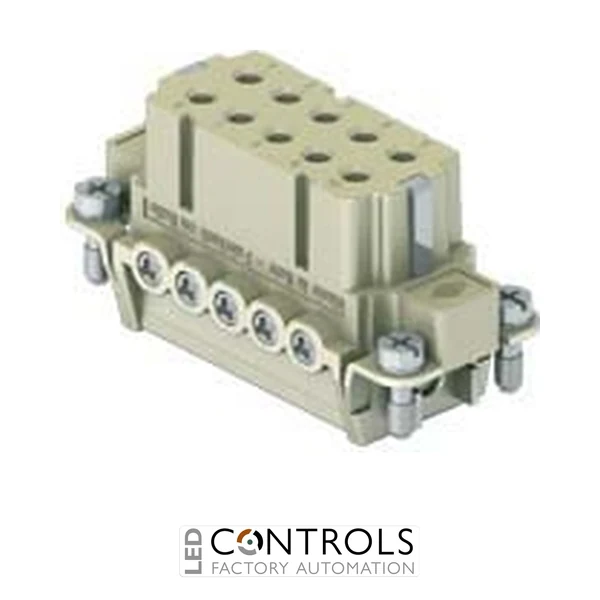

The Ilme CDAF10X, manufacturer designation CDAF 10 X, is a female multipole insert with 10 poles plus protective earth (PE) from the Ilme CDA series. Designed for compatible heavy-duty rectangular connector enclosures, it combines 16 A current capacity with a 250 V rated voltage and dependable screw-terminal wiring.
This CDA insert uses turned silver-plated female contacts and accommodates conductors from 0.25 mm² to 2.5 mm², equivalent to 24–14 AWG. The CDAF10X is the direct screw-terminal version without a pressure plate, intended for prepared conductors, distinguishing it from the CDAF10 indirect connection version with pressure plate.
With an Ilme enclosure size of 49.16, the CDAF10X is suitable for compact industrial power, control and signal connector assemblies. Its electrical characteristics are specified as 16 A, 250 V, 4 kV, pollution degree 3, providing a robust connection platform for machinery, automation equipment and other industrial installations.
Key Advantages
- 10 poles plus PE provides multiple connections and protective earth within one compact insert.
- 16 A rated current supports a wide range of industrial power and control circuits.
- Screw-terminal connection provides straightforward field wiring and maintenance.
- Accepts conductors from 0.25 mm² to 2.5 mm².
- Turned silver-plated contacts provide a low-resistance electrical interface.
- Compact size 49.16 format integrates with compatible Ilme enclosures.
- Direct terminal design is supplied without a pressure plate for prepared conductors.
Key Features
- Ilme CDA series female connector insert.
- 10 poles + protective earth (PE).
- Female connection with female contacts.
- Screw terminal conductor termination.
- 16 A at 250 V rated characteristics.
- 4 kV rated impulse withstand voltage.
- 0.25–2.5 mm² conductor capacity.
- Silver-plated turned contacts.
- Compatible with appropriate size 49.16 Ilme enclosures.
Reliable Screw-Terminal Connectivity for Industrial Equipment
The CDAF10X combines conventional screw-terminal wiring with precision turned contacts, providing a practical solution where conductors need to be installed, inspected or replaced during equipment assembly and maintenance. Its broad 0.25 mm² to 2.5 mm² conductor range supports many industrial control and power wiring requirements without requiring separate crimp contacts.
When installed in an appropriate Ilme enclosure, the insert forms part of a heavy-duty connector assembly capable of achieving IP65/IP66 protection. This makes the CDAF10X suitable for detachable electrical interfaces on machinery and industrial equipment where reliable multipole connectivity and convenient servicing are required.
Typical Applications
- Industrial machinery power and control connections.
- Factory automation equipment.
- Control-panel and machine interconnections.
- Motor and actuator wiring interfaces.
- Industrial equipment requiring detachable multipole connections.
- Compatible Ilme size 49.16 heavy-duty connector assemblies.
