Why Choose the ILME CDAF16N Female 16-Pole Insert?

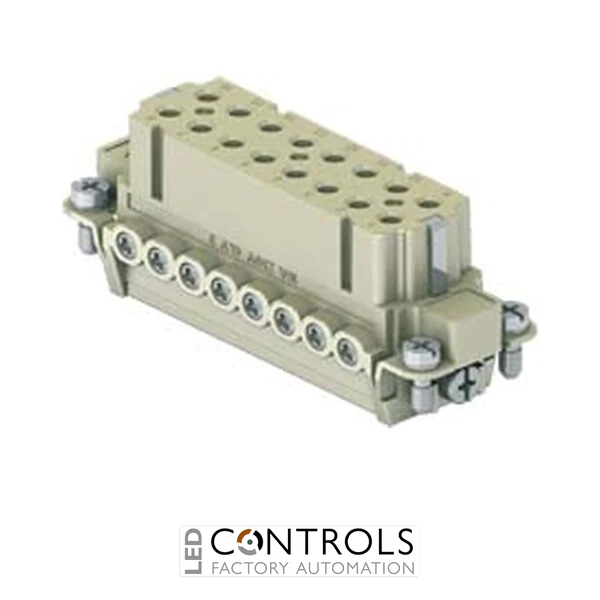

The ILME CDAF16N is a robust female multipole connector insert designed for dependable electrical connections in industrial machinery, automation and control systems. Featuring 16 poles plus protective earth, a 16 A rated current and conventional screw termination, it provides a practical solution for field-wired heavy-duty connector assemblies.
Designed as part of the ILME CDA series, the CDAF16N combines a high contact density with straightforward screw-terminal wiring. Conductors are secured directly at the insert without requiring separate crimp contacts, helping simplify assembly and maintenance while providing reliable conductor retention for demanding industrial applications.
The female insert is designed to mate with the corresponding ILME male insert and to be installed in a compatible ILME hood or housing. Its 16-pole plus PE configuration makes it particularly useful where numerous power, control or auxiliary circuits must be carried through a single detachable rectangular connector.
Key Advantages
- Heavy-duty female connector insert with 16 poles plus protective earth.
- 16 A rated current suitable for industrial power and control circuits.
- Screw termination enables straightforward conductor installation without separate crimp contacts.
- High contact density supports multiple circuits through one connector assembly.
- Detachable connector format simplifies machinery installation and servicing.
- Designed for compatible ILME heavy-duty connector hoods and housings.
- Suitable for machine building, automation and industrial control applications.
Key Features
- ILME CDA series multipole insert.
- 16 poles plus PE contact arrangement.
- Female connection configuration.
- 16 A rated current.
- 250 V rated voltage.
- Conventional screw-terminal connection.
- Protective-earth connection integrated into the insert.
- Thermoplastic insulating insert construction.
- Designed for heavy-duty rectangular multipole connectors.
- Suitable for repeated industrial mating and disconnection.
Practical Screw-Terminal Connectivity for Industrial Equipment
Screw-terminal connector inserts provide a familiar and serviceable method of terminating industrial wiring. Conductors are secured directly within the insert, eliminating the need to purchase and install separate crimp contacts while allowing individual connections to be accessed during installation or maintenance.
The ILME CDAF16N combines this straightforward termination method with sixteen electrical poles and a dedicated protective-earth connection. When assembled with a compatible ILME hood or housing and corresponding male insert, it creates a robust detachable interface for machinery and industrial electrical systems.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Electrical control panels and cabinets.
- Production and processing machinery.
- Conveyor and material-handling systems.
- Motor, actuator and auxiliary equipment connections.
- Detachable industrial power and control cable assemblies.
