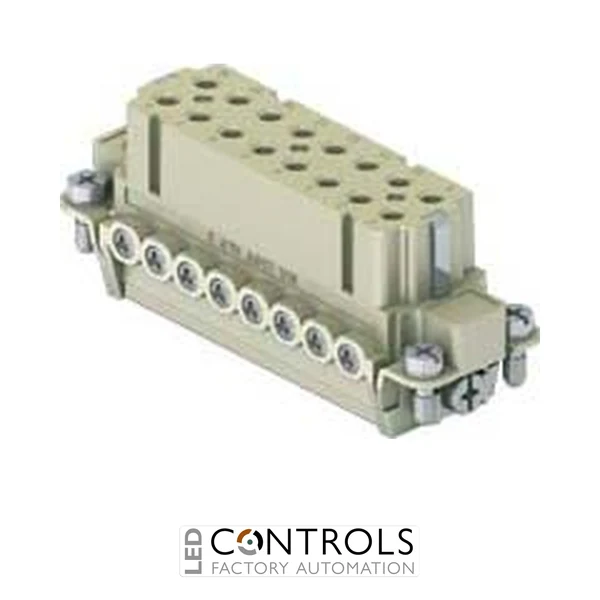

Why Choose the ILME CDAF16X Female 16-Pole Insert?
The ILME CDAF16X is a robust female multipole connector insert designed for reliable electrical connections in industrial machinery, automation and control systems. Featuring 16 poles plus protective earth, a 16 A rated current and screw termination, it provides a practical and serviceable solution for heavy-duty rectangular connector assemblies.
As part of the ILME CDA series, the CDAF16X combines a high contact density with straightforward screw-terminal wiring. Conductors can be terminated directly at the insert without separate removable crimp contacts, simplifying installation and making individual connections readily accessible during assembly and maintenance.
The female insert is designed for use with a corresponding compatible ILME male insert and suitable ILME hood or housing. Its 16-pole plus PE arrangement allows multiple power, control and auxiliary circuits to be carried through a single detachable industrial connector, making it well suited to machine building and factory automation.
Key Advantages
- Heavy-duty female connector insert with 16 poles plus protective earth.
- 16 A rated current for industrial power and control circuits.
- Screw termination provides straightforward and serviceable conductor connections.
- No separate crimp contacts required for conductor termination.
- High contact density enables numerous circuits within one connector assembly.
- Designed for compatible ILME heavy-duty connector hoods and housings.
- Suitable for machinery, automation and industrial control installations.
Key Features
- ILME CDA series multipole insert.
- 16 poles plus PE contact arrangement.
- Female connection configuration.
- 16 A rated current.
- Industrial multipole connector design.
- Integral screw-terminal connections.
- Dedicated protective-earth connection.
- Insulating insert construction for industrial connector assemblies.
- Designed for mating with the corresponding compatible male insert.
- Suitable for detachable power and control connections.
Practical Screw-Terminal Connectivity for Industrial Equipment
Screw-terminal connector inserts provide a proven method of terminating industrial wiring directly at the connector. Conductors are mechanically secured by the terminal screws, providing an accessible connection method that is convenient for installation, inspection and maintenance without requiring dedicated crimp contacts.
The ILME CDAF16X combines screw termination with sixteen electrical poles and a protective-earth connection in a detachable multipole format. When installed with compatible ILME connector components, it provides a robust interface between fixed and removable sections of industrial machinery and electrical equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Electrical control panels and cabinets.
- Production and processing equipment.
- Conveyor and material-handling systems.
- Motor, actuator and auxiliary equipment wiring.
- Detachable industrial power and control cable assemblies.
