Why Choose the ILME CDAM10 Male Insert?

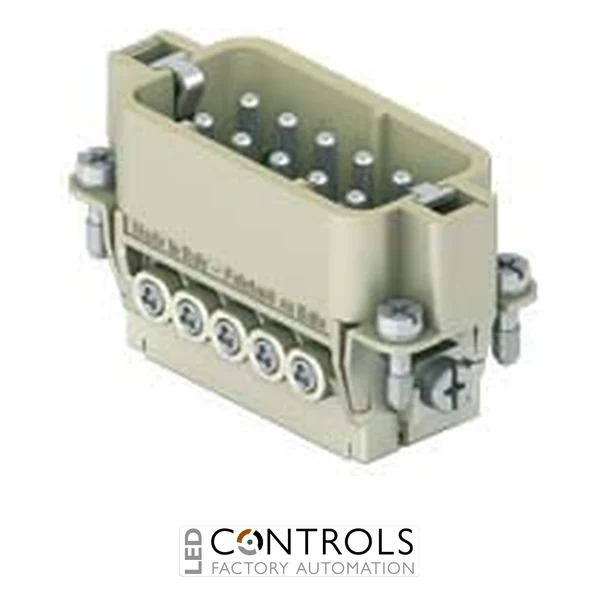

The ILME CDAM10 is a robust male multipole connector insert with 10 poles plus protective earth (PE), designed for reliable industrial power, control and signal connections. Part of the established ILME CDA series, it combines screw-terminal wiring with male contacts to provide a secure and serviceable connection for machinery, automation systems and electrical equipment.
Rated at 16 A, the CDAM10 is designed for demanding industrial connector applications where multiple circuits need to be connected through a single removable interface. Screw termination provides a practical field-wiring method, while the multipole arrangement reduces the number of separate connectors required within machinery and control installations.
The CDAM10 has a 10-pole + PE configuration and is designed for the 49.16 connector size. Its compact industrial format makes it well suited to applications requiring dependable multi-circuit connectivity while retaining straightforward installation, inspection and maintenance.
Key Advantages
- 10 poles + PE male insert for industrial multipole connections.
- 16 A rated current for power, control and auxiliary circuits.
- Secure screw-terminal connection for practical field wiring.
- Male contact configuration for use with the corresponding female connector insert.
- Compact size 49.16 format for industrial connector assemblies.
- Provides a removable multi-circuit interface for easier installation and equipment servicing.
Key Features
- ILME CDA series multipole connector insert.
- 10 poles plus protective earth (PE).
- Male connection configuration.
- 16 A rated current.
- Screw-terminal conductor connection.
- Designed for size 49.16 connector assemblies.
- Suitable for detachable industrial power, control and signal wiring.
- Designed for machinery, panel building and industrial automation applications.
Reliable Multipole Connections for Industrial Equipment
Multipole connector inserts allow numerous electrical circuits to be connected and disconnected through a single industrial connector assembly. This approach simplifies machine installation and maintenance while providing an organised interface between control panels, machinery modules and other electrical equipment.
The ILME CDAM10 combines a 10-pole arrangement with a dedicated protective-earth connection and screw termination. When installed with compatible ILME connector components, it provides a practical solution for detachable electrical connections in industrial environments.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Motor and machinery interconnections.
- Robotics and automated manufacturing equipment.
- Industrial power, control and signal connections.
