Why Choose the Ilme CDAM10X Male Insert?

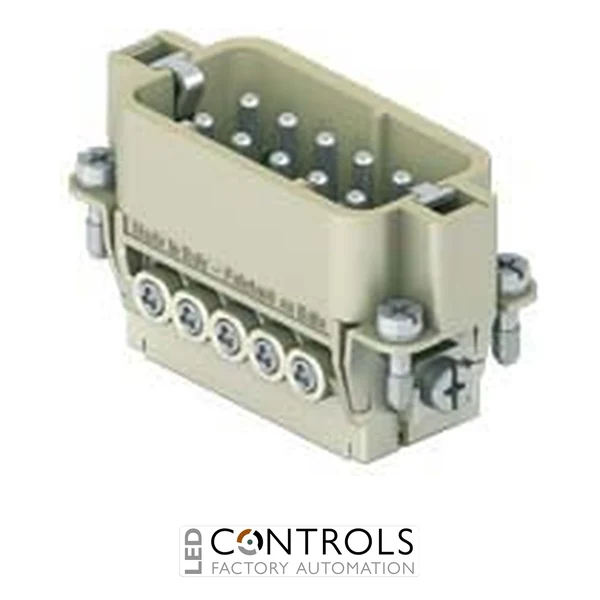

The Ilme CDAM10X is a robust 10-pole plus protective earth male connector insert designed for reliable power and control connections in industrial machinery, automation equipment and electrical installations. Part of the established Ilme CDA series, this insert combines screw-terminal wiring with durable silver-plated male contacts for dependable electrical connections in demanding industrial environments.
Rated at 16 A and 250 V, the CDAM10X provides 10 numbered poles plus a protective earth connection and has a rated impulse withstand voltage of 4 kV. Its conventional screw-terminal connection allows prepared conductors to be securely terminated without requiring separate crimp contacts or specialist crimping equipment.
The CDAM10X is manufactured in size 49.16 and is the version supplied without plate. It accepts conductor cross-sections from 0.25–2.50 mm² (AWG 24–14), making it a versatile insert for multipole industrial connections where secure, serviceable screw termination is required.
Key Advantages
- 10 poles plus protective earth for multipole industrial connections.
- 16 A current rating suitable for power, control and auxiliary circuits.
- 250 V rated voltage with 4 kV rated impulse withstand voltage.
- Reliable screw-terminal connection for prepared conductors.
- Accepts conductors from 0.25–2.50 mm².
- Durable turned silver-plated male contacts provide low-resistance electrical connections.
Key Features
- Ilme CDA series male insert.
- 10 poles + PE contact arrangement.
- 16 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw-terminal connection for straightforward conductor termination.
- 0.25–2.50 mm² / AWG 24–14 conductor range.
- Turned silver-plated male contacts.
- Size 49.16 insert format.
- Polycarbonate insulating body in RAL 7032 grey.
- Supplied without plate.
Reliable Screw-Terminal Connections for Industrial Equipment
The Ilme CDAM10X provides a practical method of terminating multiple conductors within a heavy-duty industrial connector system. Screw terminals securely clamp prepared conductors while allowing connections to be inspected, serviced and rewired when necessary, making this termination technology particularly useful for machinery, control panels and equipment installations.
When installed in a compatible Ilme enclosure, the CDA insert forms part of a protected multipole connector assembly suitable for industrial environments. The combination of a durable polycarbonate insulating body, turned silver-plated contacts and protective earth connection supports reliable electrical performance across repeated equipment connections.
Typical Applications
- Industrial machinery power and control connections.
- Factory automation and production equipment.
- Electrical control panels and switchgear.
- Motor and auxiliary circuit connections.
- OEM machinery and equipment manufacturing.
- Robotics and material handling systems.
- Industrial multipole connector assemblies.
