Why Choose the Ilme CDAM16 Male Insert?

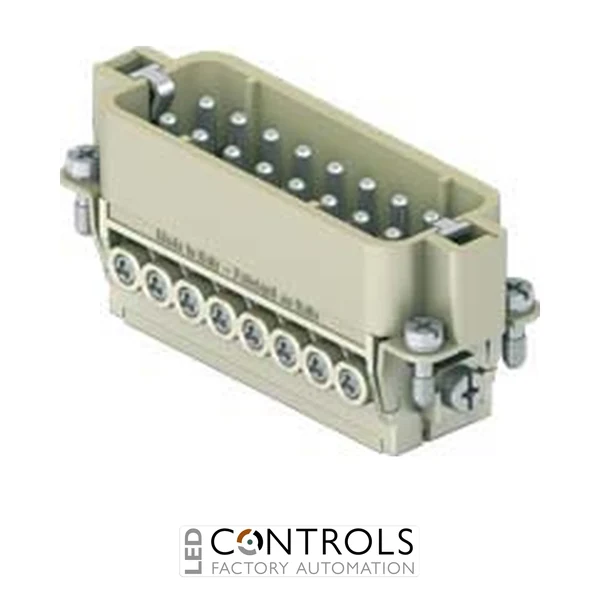

The Ilme CDAM16 is a robust 16-pole plus protective earth male connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CDA series, this male insert combines a high contact density with dependable screw-terminal technology for straightforward installation and maintenance.
Rated at 16 A, the CDAM16 is designed for industrial power, control and auxiliary circuits where multiple conductors need to be connected through a single heavy-duty connector assembly. Its 16 poles plus protective earth (PE) provide a practical interface for machinery and equipment that require numerous electrical connections while maintaining a dedicated protective conductor.
The CDAM16 uses the Ilme size 66.16 insert format and features male contacts with screw termination. This arrangement allows conductors to be connected directly to the insert without separate crimp contacts, making it particularly suitable for panel builders, machine manufacturers and maintenance engineers who require secure and serviceable field wiring.
Key Advantages
- 16 poles plus protective earth for high-density industrial connections.
- 16 A current rating suitable for a wide range of power and control circuits.
- Reliable screw-terminal connection for straightforward conductor termination.
- Male contact configuration for use with the corresponding female connector insert.
- Size 66.16 format for compatible Ilme housings and hoods.
- Eliminates the need for separate crimp contacts and crimping tools during termination.
- Suitable for machinery, automation, control panels and industrial equipment.
Key Features
- Ilme CDA series industrial connector insert.
- 16 poles + PE contact arrangement.
- Male insert configuration.
- 16 A rated current.
- Screw-terminal termination.
- Size 66.16 insert format.
- Integrated protective earth connection.
- Designed for prepared conductors and direct field wiring.
- Suitable for compatible Ilme rectangular industrial connector enclosures.
- Designed for reliable detachable connections in industrial electrical systems.
Reliable Multipole Connections for Industrial Equipment
Heavy-duty rectangular connectors allow machinery and electrical equipment to be installed, disconnected and serviced without individually removing every conductor from a control panel. The Ilme CDAM16 provides 16 male electrical poles together with protective earth in a compact insert, making it well suited to applications where numerous power, signal or control conductors must pass through one detachable connector interface.
Screw-terminal technology provides a familiar and serviceable method of conductor termination. Conductors are secured directly within the insert, allowing technicians to assemble and maintain connector systems using conventional wiring practices while benefiting from the mechanical protection provided by a compatible Ilme hood or housing.
Typical Applications
- Industrial machinery power and control connections.
- Factory automation and production equipment.
- Electrical control panels and switchgear assemblies.
- Machine tools and manufacturing systems.
- Conveyors and material handling equipment.
- OEM machinery and equipment manufacturing.
- Motor, sensor and auxiliary circuit connections.
- Industrial multipole connector assemblies.
