Why Choose the ILME CDCM10 Male 10-Pole Crimp Insert?

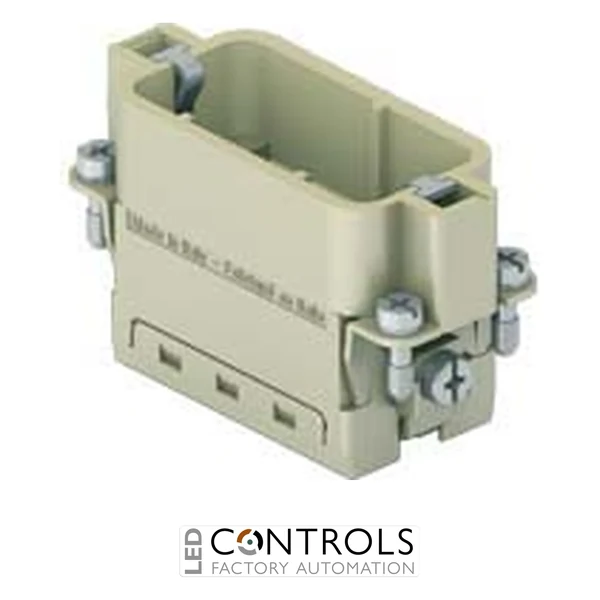

The ILME CDCM10 is a compact male multipole connector insert designed for reliable electrical connections in industrial machinery, automation and control systems. Featuring 10 poles plus protective earth, a 16 A rated current and removable crimp contacts, it provides a robust solution for detachable heavy-duty industrial connector assemblies.
Designed for use within compatible ILME hoods and housings, the CDCM10 uses crimp termination to provide secure conductor connections with excellent resistance to vibration. Conductors are crimped to separately selected contacts before insertion into the connector, allowing the contact size to be matched to the wiring requirements of the application.
With an insert size of 49.16 and a 10-pole plus PE configuration, the CDCM10 offers a space-efficient way to carry multiple power, control or auxiliary circuits through a single detachable connector. Its male configuration is designed to mate with the corresponding compatible ILME female insert.
Key Advantages
- Compact male connector insert with 10 poles plus protective earth.
- 16 A rated current for industrial power and control connections.
- Crimp termination provides secure and vibration-resistant conductor connections.
- Removable contacts simplify connector assembly, servicing and rewiring.
- Separate contacts allow conductor size to be selected for the application.
- Designed for compatible ILME heavy-duty connector hoods and housings.
- Ideal for machinery, automation and industrial electrical installations.
Key Features
- ILME CDC series multipole insert.
- 10 poles plus PE contact arrangement.
- Male connection configuration.
- 16 A rated current.
- Removable crimp-contact termination.
- Integrated protective-earth connection.
- 49.16 insert size.
- Compact high-density multipole design.
- Designed for compatible ILME rectangular connector housings.
- Suitable for detachable industrial power and control connections.
Reliable Crimp Connectivity for Industrial Equipment
Crimp termination provides a strong mechanical and electrical connection by compressing the contact barrel around the stripped conductor. When the correct contact and crimping tool are used, this connection method provides consistent conductor retention and excellent resistance to vibration, making it well suited to industrial machinery and automation equipment.
The ILME CDCM10 combines removable crimp contacts with a compact ten-pole-plus-earth arrangement. When assembled with the appropriate contacts, compatible housing and corresponding female insert, it provides a robust detachable electrical interface that simplifies machine installation and maintenance.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Electrical control panels and cabinets.
- Production and processing machinery.
- Conveyor and material-handling equipment.
- Motor, actuator and auxiliary equipment connections.
- Detachable industrial power and control cable assemblies.
