Why Choose the Ilme CDCM16N Male Insert?

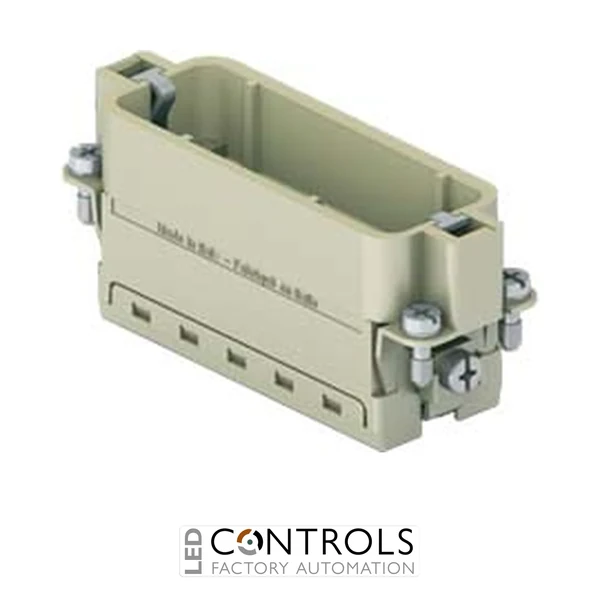

The Ilme CDCM16N is a robust 16-pole plus earth male connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CDC series, it uses crimp termination and is rated at 16 A and 250 V.
This insert is specifically intended as the second 16-pole insert in compatible size 66.40 connector assemblies, providing contact positions 17–32 plus protective earth. Used together with the corresponding first insert, it enables a high-density 32-pole connector configuration while retaining the advantages of individually crimped contacts.
The crimp connection system provides secure, repeatable conductor termination and is particularly well suited to production wiring and industrial installations where vibration resistance and consistent connection quality are important. The CDCM16N is the male insert version and is designed to mate with the corresponding female contact arrangement within a compatible Ilme rectangular connector assembly.
Key Advantages
- 16-pole plus protective earth male insert for industrial multipole connections.
- 16 A rated current for power, control and auxiliary circuits.
- 250 V rated voltage for compatible industrial electrical systems.
- Crimp termination provides reliable and repeatable conductor connections.
- Contact numbering 17–32 supports expanded 32-pole connector assemblies.
- Designed for compatible size 66.40 Ilme housings and connector systems.
Key Features
- Ilme CDC series multipole connector insert.
- 16 poles plus protective earth (16+PE).
- Male contact configuration.
- 16 A rated current.
- 250 V rated voltage.
- Crimp electrical connection.
- Contact positions numbered 17–32.
- Designed as the complementary insert for a 32-pole arrangement.
- Suitable for compatible Ilme size 66.40 rectangular connector assemblies.
- Separate crimp contacts allow conductors to be terminated before insertion into the connector body.
Reliable Crimp Connections for Industrial Equipment
Crimp connector systems provide a mechanically secure electrical termination by compressing the contact around the conductor using the appropriate crimping tool. This method produces consistent connections without relying on terminal screws and is particularly useful for repetitive production wiring, machine building and installations exposed to vibration.
The Ilme CDCM16N extends a compatible connector arrangement with positions 17–32, allowing two 16-pole sections to form a larger multipole interface. This modular arrangement simplifies the connection and disconnection of multiple circuits during equipment installation, servicing and replacement.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine-to-machine electrical connections.
- Control panel and cabinet interfaces.
- Conveyor and material handling equipment.
- OEM machinery and modular equipment wiring.
