Why Choose the Ilme CDDF108 Female Insert?

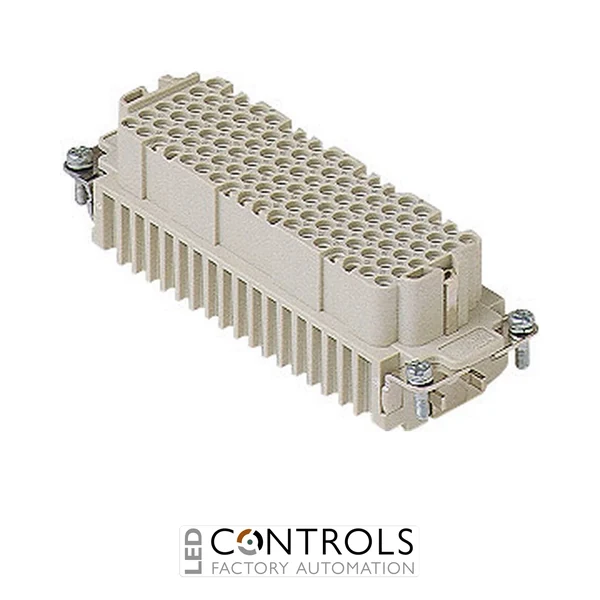

The Ilme CDDF108 is a high-density 108-pole plus earth female connector insert designed for reliable electrical connections in industrial machinery, automation systems and multipole connector assemblies. Part of the Ilme CDD series, it combines a large number of contact positions with compact size 104.27 construction and dependable crimp termination.
Rated at 10 A and 250 V, the CDDF108 is suitable for carrying multiple control, signal and auxiliary power circuits through a single heavy-duty rectangular connector. Its crimp-contact design allows individual conductors to be terminated before the contacts are inserted into the connector body, supporting consistent wiring quality and straightforward assembly.
The insert provides 108 female contact positions plus protective earth and offers a rated impulse withstand voltage of 4 kV. With a wide operating temperature range and at least 500 mating cycles, it is designed for long-term use in demanding industrial installations where compact, serviceable and high-density connectivity is required.
Key Advantages
- 108-pole plus protective earth configuration provides exceptionally high connection density.
- 10 A rated current suitable for control, signal and auxiliary power circuits.
- 250 V rated voltage for industrial electrical applications.
- Crimp termination provides secure, repeatable conductor connections.
- Compact size 104.27 format reduces the space required for large multipole interfaces.
- Designed for at least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- Ilme CDD series high-density multipole connector insert.
- 108 poles plus protective earth (108+PE).
- Female contact configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Crimp connection for main contacts.
- Separate screw connection for protective earth.
- Pollution degree 2.
- At least 500 mating cycles.
- IP20 protection without enclosure.
- Operating temperature range from -40 °C to +125 °C.
- UL 94 V-0 flammability classification.
Reliable High-Density Connections for Industrial Equipment
High-density multipole connector inserts such as the Ilme CDDF108 allow a large number of individual electrical circuits to pass through one detachable connector assembly. This can significantly simplify machine wiring, commissioning and maintenance compared with individually disconnecting numerous terminal connections.
The crimp-contact system provides consistent electrical and mechanical termination when used with the appropriate Ilme contacts and crimping equipment. When installed in a compatible Ilme size 104.27 enclosure, the CDDF108 forms part of a robust industrial connector system suitable for repeated connection cycles and demanding operating environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density control and signal wiring.
- Machine-to-machine electrical interfaces.
- Control panels and electrical cabinets.
- Robotics and automated production equipment.
- Conveyor and material handling systems.
- OEM machinery and modular equipment assemblies.
