Why Choose the ILME CDDF24 Female Insert?

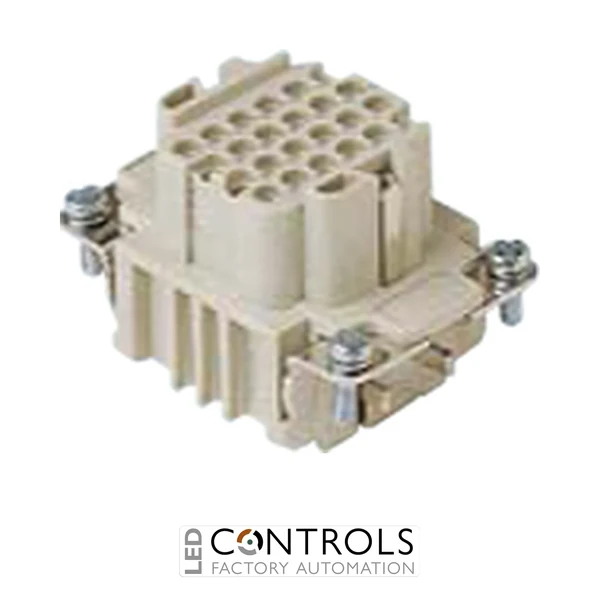

The ILME CDDF24 is a high-density female multipole connector insert with 24 poles plus protective earth (PE), designed for reliable industrial control, signal and auxiliary electrical connections. Part of the ILME CDD series, this insert combines a compact contact arrangement with crimp termination, making it ideal for machinery, automation equipment and industrial installations where connection density and dependable performance are important.
The CDDF24 is rated at 10 A and 250 V according to EN 61984 characteristics, with a rated impulse withstand voltage of 4 kV. Its polycarbonate insulating body provides excellent electrical insulation and is rated UL 94 V-0 for flame resistance, while the insert offers IP20 protection when used without an enclosure.
Designed for size 44.27 industrial connector assemblies, the CDDF24 uses separately ordered female crimp contacts supporting conductor sizes from 0.14–2.5 mm². Its 24-pole + PE configuration delivers a compact detachable interface with a mechanical life of at least 500 mating cycles.
Key Advantages
- High-density 24 poles + PE female connector insert.
- 10 A, 250 V electrical rating for industrial control and signal circuits.
- Crimp termination provides reliable and repeatable conductor connections.
- Compact size 44.27 format for space-efficient connector assemblies.
- Supports conductors from 0.14–2.5 mm² with the appropriate crimp contacts.
- Durable construction rated for at least 500 mating cycles.
Key Features
- ILME CDD series high-density multipole insert.
- 24 poles plus protective earth (PE).
- Female connection configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Crimp contact termination with contacts ordered separately.
- Polycarbonate insulating body in RAL 7032 grey.
- IP20 protection without enclosure.
- Operating temperature range of -40 to +125 °C.
Reliable High-Density Industrial Connections
High-density multipole connector inserts allow numerous electrical circuits to be combined within a single removable industrial interface. This simplifies machine installation and servicing while reducing the space required for separate connectors and providing an organised connection point between equipment modules, control cabinets and field wiring.
The ILME CDD series is specifically designed for applications requiring high contact density. The CDDF24 accommodates separately ordered silver- or gold-plated female crimp contacts in conductor sizes from 0.14–2.5 mm², allowing the connection system to be configured for the wiring requirements of the application.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated assembly machinery.
- Electrical control panels and cabinets.
- High-density control and signal wiring.
- Modular machinery requiring detachable multicore connections.
