Why Choose the Ilme CDDF38 Female Insert?

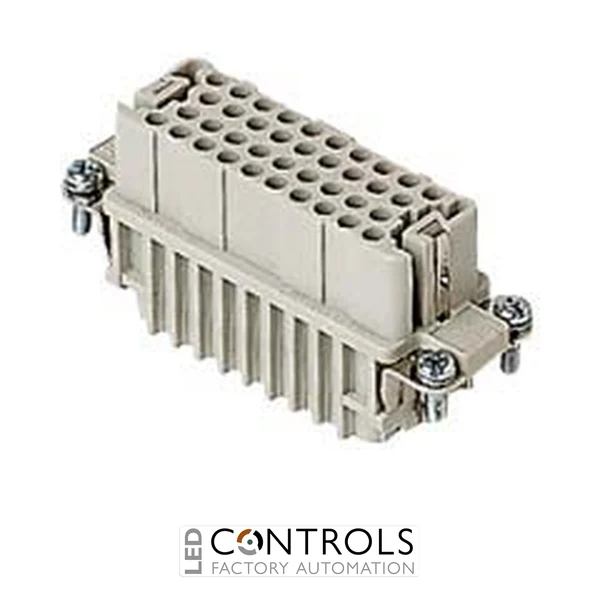

The Ilme CDDF38 is a high-density 38-pole plus protective earth female connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the Ilme CDD series, it provides a large number of contacts within the compact size 66.16 format, making it particularly suitable where installation space is limited and numerous circuits must pass through a single connector.
Rated at 10 A, the CDDF38 uses crimp termination to provide secure and consistent conductor connections. The female insert accepts separately selected compatible Ilme crimp contacts, allowing the contact size and conductor range to be matched to the wiring requirements of the application.
With 38 poles plus protective earth (PE), the CDDF38 is well suited to signal, control and auxiliary power connections in complex machinery and automation installations. When assembled with the corresponding male insert, suitable crimp contacts and a compatible Ilme hood or housing, it forms a robust detachable interface for industrial equipment.
Key Advantages
- High-density 38-pole plus protective earth connector arrangement.
- 10 A rated current suitable for industrial control, signal and auxiliary circuits.
- Crimp termination provides secure and repeatable conductor connections.
- Compact size 66.16 format accommodates a large number of contacts.
- Female contact configuration for mating with the corresponding male CDD insert.
- Separate crimp contacts allow conductor termination to be selected for the application.
- Ideal for machinery and automation systems requiring high-density detachable wiring.
Key Features
- Ilme CDD series industrial connector insert.
- 38 poles + PE contact arrangement.
- Female insert configuration.
- 10 A rated current.
- Crimp contact termination.
- Size 66.16 insert format.
- High contact density for compact industrial installations.
- Dedicated protective earth connection.
- Designed for use with compatible Ilme female crimp contacts.
- Suitable for compatible Ilme rectangular connector hoods and housings.
High-Density Connections for Industrial Automation
High-density multipole connectors allow numerous electrical circuits to be routed through a single detachable interface, reducing the number of individual connectors required on machinery and control equipment. The Ilme CDDF38 provides 38 contact positions plus protective earth within the size 66.16 format, making efficient use of installation space in complex industrial systems.
Crimp termination is particularly suited to production wiring and machinery assembly because correctly selected contacts can provide consistent mechanical and electrical connections. Once terminated, the contacts are inserted into the appropriate positions in the CDDF38 insulating body, creating an organised connector interface that can be disconnected for installation, servicing or equipment replacement.
Typical Applications
- Industrial machinery control connections.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Electrical control panels and switchgear assemblies.
- Signal and auxiliary power distribution.
- OEM machinery and equipment manufacturing.
- Conveyor and material handling systems.
- High-density industrial multipole connector assemblies.
