Why Choose the ILME CDDF72N Female Connector Insert?

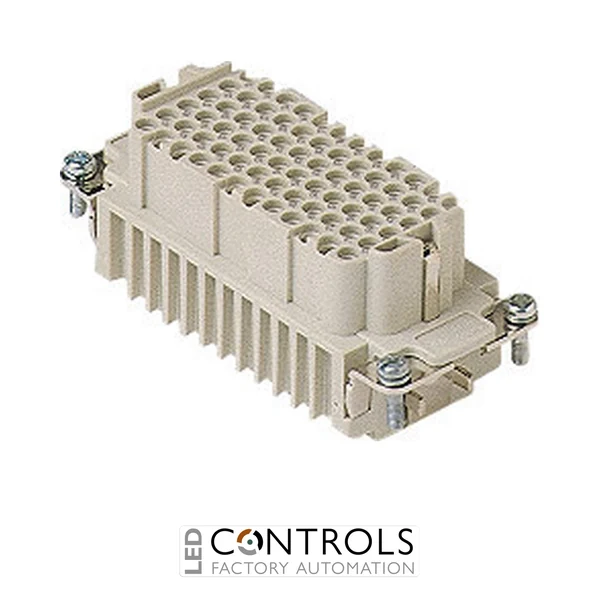

The ILME CDDF72N is a high-density female heavy-duty connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CDD series, this crimp-connection insert provides positions numbered 73–144 and is designed to be used together with its corresponding insert to form a high-density 144-pole connector arrangement.
The CDDF72N uses crimp termination with separately ordered ILME CD female contacts, providing secure and vibration-resistant conductor connections. Its compact high-density configuration makes it particularly suitable for machine builders and panel builders who need to accommodate a large number of control, signal and auxiliary circuits within a single rectangular industrial connector system.
With a rated current of 10 A and rated voltage of 250 V, the CDDF72N is engineered for dependable industrial connectivity. It features a 4 kV rated impulse withstand voltage, pollution degree 2 and size 77.62, with a robust polycarbonate insulating body suitable for demanding industrial installations.
Key Advantages
- High-density female connector insert with positions 73–144.
- Designed as part of a 144-pole + PE connector arrangement.
- 10 A rated current suitable for industrial control and signal circuits.
- 250 V rated voltage with a 4 kV impulse withstand rating.
- Reliable crimp connection technology for secure conductor termination.
- Compact 77.62 size for high-density industrial connector installations.
Key Features
- ILME CDD series heavy-duty multipole connector insert.
- Female insert for female CD crimp contacts.
- Pole numbering 73–144 for a 144-pole + PE arrangement.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 2.
- 600 V rated voltage according to UL/CSA.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
- Operating temperature range of −40 to +125 °C.
- Designed for at least 500 mating cycles.
- Crimp contacts are ordered separately to suit the required conductor size.
Reliable High-Density Industrial Connectivity
Heavy-duty multipole connectors such as the ILME CDD series allow a large number of electrical circuits to be routed through a compact, serviceable industrial interface. This can reduce individual wiring connections between machine sections while improving installation efficiency, maintenance access and modular machine construction.
The CDDF72N is designed for applications requiring particularly high contact density. Its crimp termination system provides mechanically secure electrical connections, while the CDD architecture enables the insert to form part of a 144-pole + PE configuration. When installed in a suitable ILME enclosure, the connector system can provide enhanced environmental protection for demanding industrial applications.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- High-density signal and control wiring interfaces.
