Why Choose the ILME CDDM42 Male 42-Pole Crimp Insert?

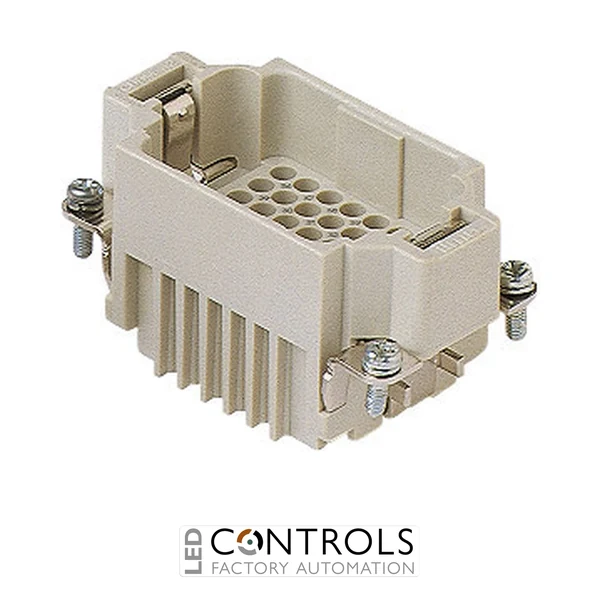

The ILME CDDM42 is a high-density male multipole connector insert designed for industrial applications requiring a large number of electrical connections within a compact heavy-duty connector assembly. Featuring 42 poles plus protective earth, a 10 A rated current and crimp termination, it is well suited to complex control, signal and auxiliary wiring in machinery and automation systems.
As part of the ILME CDD series, the CDDM42 uses removable crimp contacts that are terminated to individual conductors before insertion into the connector. This termination method provides secure electrical and mechanical connections while supporting efficient pre-assembly of cable harnesses and straightforward servicing when required.
With its 57.27 insert size and 42-pole plus PE configuration, the CDDM42 delivers excellent connection density where installation space is limited. The male insert is designed to mate with the corresponding compatible female insert and to be installed within suitable ILME heavy-duty connector hoods and housings.
Key Advantages
- High-density 42-pole plus protective-earth connector configuration.
- 10 A rated current for compatible industrial control, signal and auxiliary circuits.
- Crimp termination provides secure and vibration-resistant conductor connections.
- Accommodates numerous circuits within a single detachable connector assembly.
- Removable contacts support efficient cable-harness assembly and maintenance.
- 57.27 size format for compatible ILME hoods and housings.
- Ideal for industrial automation, machinery and equipment interconnections.
Key Features
- ILME CDD series high-density multipole insert.
- 42 poles plus PE.
- Male connection configuration.
- 10 A rated current.
- Crimp-contact termination.
- Removable contacts for flexible cable assembly.
- Integrated protective-earth connection.
- 57.27 insert size.
- High contact density for complex industrial wiring.
- Designed for compatible ILME rectangular heavy-duty connector systems.
High-Density Connectivity for Complex Industrial Wiring
High-pole-count connector inserts allow numerous control, signal and auxiliary circuits to pass through one detachable interface, reducing the number of separate connectors required on machinery and equipment. This can simplify installation, cable management and maintenance while making efficient use of available panel and machine space.
The ILME CDDM42 combines this high connection density with removable crimp contacts. When assembled using the appropriate contacts, compatible housing and corresponding female insert, it provides a practical and robust connection system for complex industrial cable assemblies.
Typical Applications
- Industrial machinery and machine building.
- Factory automation equipment.
- PLC and control-system interconnections.
- Production and processing machinery.
- Robotics and automated handling systems.
- High-density control and signal cable assemblies.
- Detachable machinery and equipment wiring.
