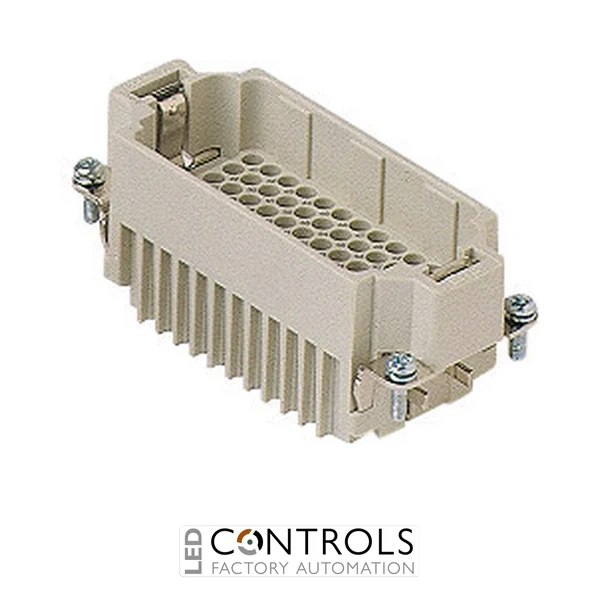

Why Choose the ILME CDDM72 Male 72-Pole Crimp Insert?
The ILME CDDM72 is a high-density male multipole connector insert designed for industrial applications requiring a large number of electrical connections within a single heavy-duty connector assembly. Featuring 72 poles plus protective earth, a 10 A rated current and crimp termination, it provides an efficient solution for complex control, signal and auxiliary wiring.
As part of the ILME CDD series, the CDDM72 uses removable crimp contacts that are terminated to individual conductors before insertion into the connector insert. Crimp technology provides secure mechanical and electrical connections while supporting efficient cable-harness preparation, installation and servicing in demanding industrial environments.
With its 77.27 insert size and 72-pole plus PE configuration, the CDDM72 offers exceptionally high connection density for machinery and automation equipment where installation space is valuable. The male insert is intended to mate with the corresponding compatible female insert and to be installed within suitable ILME heavy-duty connector hoods and housings.
Key Advantages
- High-density 72-pole plus protective-earth connector configuration.
- 10 A rated current for compatible industrial control, signal and auxiliary circuits.
- Crimp termination provides secure conductor connections for demanding installations.
- Allows numerous electrical circuits to pass through one detachable connector assembly.
- Removable contacts support efficient cable-harness assembly and maintenance.
- 77.27 size format for compatible ILME connector housings.
- Ideal for automation, machinery and high-density industrial wiring applications.
Key Features
- ILME CDD series high-density multipole insert.
- 72 poles plus PE contact arrangement.
- Male connection configuration.
- 10 A rated current.
- Crimp-contact termination.
- Removable contacts for flexible cable assembly.
- Integrated protective-earth connection.
- 77.27 insert size.
- High contact density for complex industrial wiring.
- Designed for compatible ILME rectangular heavy-duty connector systems.
High-Density Connectivity for Complex Industrial Systems
High-pole-count multipole inserts allow numerous control, signal and auxiliary circuits to be consolidated into one detachable connector interface. This can reduce the number of separate connectors required on machinery, simplify cable management and make installation and maintenance more efficient.
The ILME CDDM72 combines a 72-pole arrangement with removable crimp contacts to provide a compact and serviceable connection solution. When assembled with the appropriate contacts, corresponding female insert and compatible ILME hood or housing, it creates a robust interface for complex industrial cable assemblies.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- PLC and control-system interconnections.
- Robotics and automated production equipment.
- Conveyor and material-handling systems.
- High-density control and signal cable assemblies.
- Detachable machinery and equipment wiring.
