Why Choose the Ilme CDF07 Female Insert?

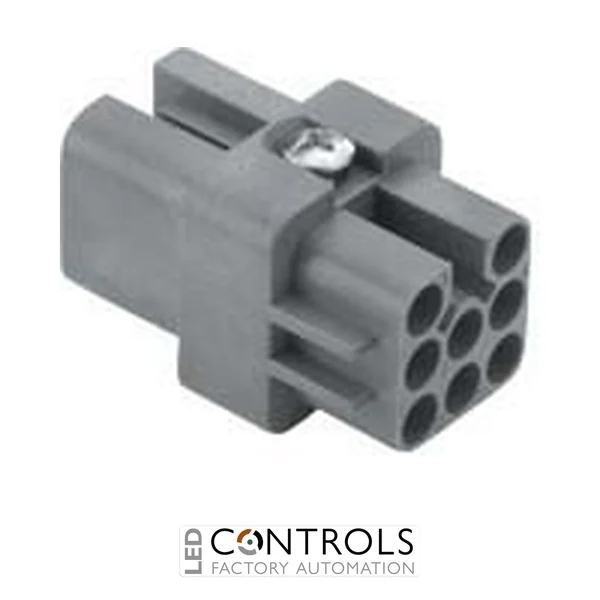

The Ilme CDF07 is a compact 7-pole plus earth female connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CD series, it combines a space-efficient size 21.21 format with crimp termination for secure and repeatable conductor connections.
Rated at 10 A and 250 V, the CDF07 is suitable for control, signal and auxiliary power circuits where a compact detachable interface is required. The insert accepts separately ordered Ilme female crimp contacts, allowing contacts to be selected to suit conductor cross-sections from 0.14–2.5 mm².
With a rated impulse withstand voltage of 4 kV, pollution degree 3 and an operating temperature range of -40 °C to +125 °C, the CDF07 is engineered for dependable industrial service. Its reinforced polycarbonate body, UL 94 V-0 flammability rating and mechanical life of at least 500 mating cycles provide a durable solution for frequently serviced machinery and equipment.
Key Advantages
- 7-pole plus protective earth female insert for compact industrial connections.
- 10 A rated current suitable for control, signal and auxiliary circuits.
- 250 V rated voltage with a 4 kV impulse withstand rating.
- Crimp termination provides secure and repeatable conductor connections.
- Compact size 21.21 format helps minimise connector footprint.
- Supports conductor cross-sections from 0.14–2.5 mm² with suitable contacts.
Key Features
- Ilme CD series multipole connector insert.
- 7 poles plus protective earth (7+PE).
- Female contact configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Crimp connection with separately ordered contacts.
- 0.14–2.5 mm² compatible conductor range.
- Polycarbonate insulating body in RAL 7032 grey.
- IP20 protection without an enclosure.
- At least 500 mating cycles.
- UL 94 V-0 flammability classification.
Reliable Compact Connections for Industrial Equipment
Multipole connector inserts such as the Ilme CDF07 allow several electrical circuits to be connected and disconnected through one compact rectangular connector assembly. This helps simplify machinery installation, commissioning and maintenance while providing an organised interface between equipment modules and control systems.
The CDF07 uses separately ordered female crimp contacts, allowing conductors to be securely terminated before insertion into the connector body. When combined with a compatible Ilme size 21.21 hood or housing and the corresponding male insert, it forms part of a robust industrial connector system suitable for repeated connection and disconnection.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Compact machine-to-machine electrical interfaces.
- Control panels and electrical cabinets.
- Sensor, actuator and auxiliary circuit connections.
- Conveyor and material handling equipment.
- OEM machinery and modular equipment.
