Why Choose the ILME CDF08 Female Insert?

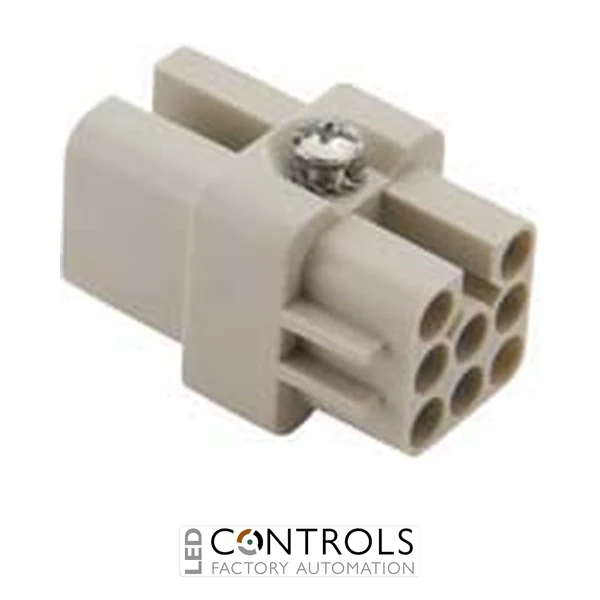

The ILME CDF08 is a compact 8-pole female multipole connector insert designed for reliable industrial control, signal and auxiliary electrical connections. Part of the established ILME CD series, it combines a space-efficient contact arrangement with crimp termination for dependable use in machinery, automation systems and industrial electrical installations.
Rated at 10 A and 50 V, the CDF08 is designed for low-voltage multipole connection applications where compact dimensions and reliable detachable wiring are required. Its crimp termination system uses separately selected female contacts, allowing conductors to be securely terminated before insertion into the insulating connector body.
Designed in the compact size 21.21 format, the CDF08 provides 8 female contact positions within a small industrial connector footprint. This makes it particularly suitable for machine builders and automation engineers who need multiple control or signal circuits in space-constrained equipment.
Key Advantages
- Compact 8-pole female industrial connector insert.
- 10 A rated current for control, signal and auxiliary circuits.
- Crimp termination supports reliable and repeatable conductor connections.
- Compact size 21.21 format saves installation space.
- Detachable multipole connection simplifies machinery installation and servicing.
- Part of the established ILME CD multipole connector system.
Key Features
- ILME CD series multipole connector insert.
- 8-pole configuration.
- Female connection design.
- 10 A rated current.
- 50 V rated voltage.
- Crimp contact termination.
- Designed for size 21.21 connector assemblies.
- Compact format for high connection density in industrial equipment.
- Suitable for industrial control, signal and auxiliary wiring.
Compact Multipole Connectivity for Industrial Equipment
Multipole connector inserts provide a convenient way to combine several electrical circuits within one detachable industrial interface. This can simplify machine installation, commissioning and maintenance while keeping control and signal wiring organised between equipment modules and electrical panels.
The ILME CDF08 combines eight contact positions with a compact 21.21 format and crimp termination. Suitable female crimp contacts are terminated to the conductors before being inserted into the connector body, creating a practical connection system for repeatable industrial wiring.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Low-voltage control and signal connections.
- Robotics and automated machinery.
- Compact detachable multicore wiring interfaces.
