Why Choose the Ilme CDF25 Female Insert?

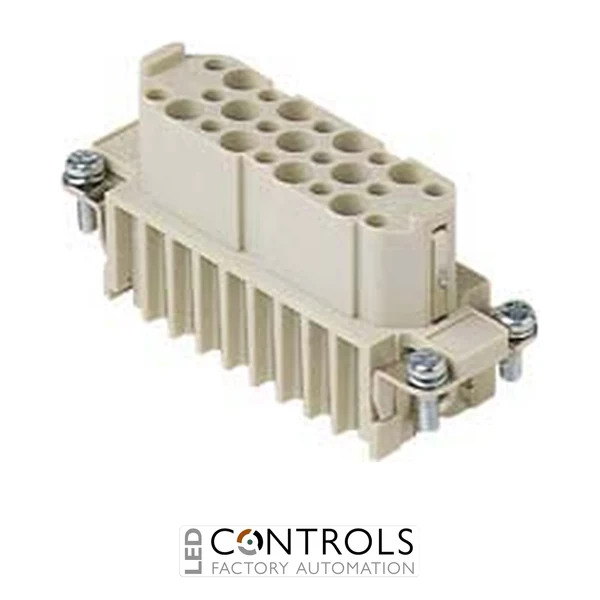

The Ilme CDF25 is a high-quality 25-pole plus protective earth female connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CD series, this insert combines a high contact density with crimp termination for secure and repeatable power, control and signal connections.
Rated at 10 A and 250 V, the CDF25 has a rated impulse withstand voltage of 4 kV and pollution degree 3. Its 25 poles plus protective earth (PE) provide a compact interface for equipment requiring numerous conductors to be routed through a single detachable industrial connector.
The CDF25 uses the Ilme size 66.16 insert format and is designed for separately ordered 10 A female crimp contacts covering conductor sizes from 0.14–2.5 mm². Its polycarbonate insulating body, operating temperature range of -40 to +125 °C and durability of at least 500 mating cycles make it suitable for demanding professional connector assemblies.
Key Advantages
- High-density 25 poles plus protective earth configuration.
- 10 A, 250 V rating suitable for industrial control, signal and auxiliary circuits.
- Crimp termination provides secure and repeatable conductor connections.
- Compatible contacts cover conductors from 0.14–2.5 mm².
- Compact size 66.16 format for compatible Ilme industrial connector enclosures.
- Designed for at least 500 mating cycles for reliable repeated connection and disconnection.
Key Features
- Ilme CD series industrial connector insert.
- 25 poles + PE contact arrangement.
- Female insert configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection with contacts ordered separately.
- Compatible female contacts for 0.14–2.5 mm² / AWG 26–14 conductors.
- Polycarbonate insulating body in RAL 7032 grey.
- Size 66.16 insert format.
- Operating temperature range from -40 to +125 °C.
Reliable High-Density Crimp Connections for Industrial Equipment
Crimp termination provides a secure mechanical and electrical connection between each conductor and contact, making it particularly suitable for production machinery and automation wiring. The Ilme CDF25 accepts separately selected 10 A female contacts for conductors from 0.14–2.5 mm², enabling the termination to be matched precisely to the conductor size while maintaining a compact 25-pole connector arrangement.
Once the appropriate contacts have been crimped onto the conductors, they are inserted into the numbered cavities of the CDF25. Combined with a compatible mating insert and Ilme enclosure, this creates a robust detachable interface that simplifies machinery installation, servicing and equipment replacement while keeping numerous electrical circuits organised within a single connector.
Typical Applications
- Industrial machinery power and control connections.
- Factory automation and production equipment.
- Electrical control panels and switchgear assemblies.
- Robotics and automated handling equipment.
- Signal and auxiliary circuit connections.
- OEM machinery and equipment manufacturing.
- Conveyor and material handling systems.
- High-density industrial multipole connector assemblies.
