Why Choose the ILME CDFA0.3 Female Crimp Contact?

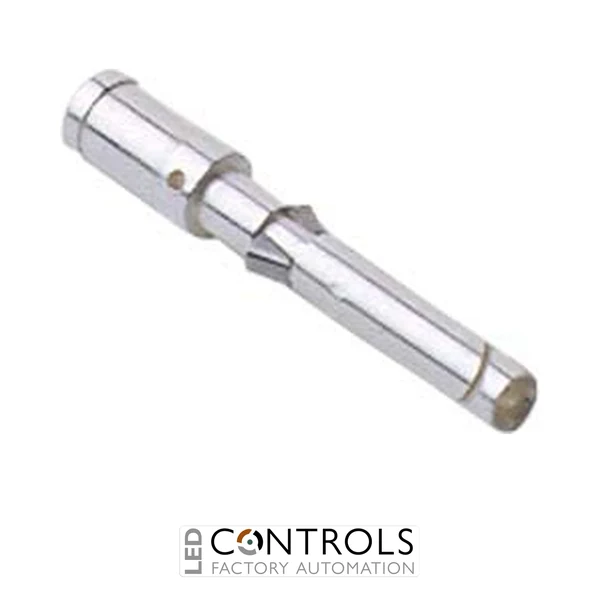

The ILME CDFA0.3 is a precision-manufactured female crimp contact designed for use with compatible ILME CD series heavy-duty connector inserts. Manufactured from copper alloy with a silver-plated contact surface, it provides a dependable electrical connection for industrial machinery, automation equipment and control systems.
This turned contact uses crimp termination, creating a mechanically secure and reliable connection between the conductor and contact when installed using suitable crimping tools. The CDFA0.3 is designed for conductors with a cross-sectional area of 0.14–0.37 mm², corresponding to approximately 26–22 AWG, making it suitable for smaller control, signal and auxiliary wiring.
With a rated current of 10 A, the CDFA0.3 provides reliable performance within compatible ILME multipole connector assemblies. Its 8 mm conductor stripping length and turned construction support consistent termination, while its mechanical durability of at least 500 mating cycles makes it suitable for industrial connector systems requiring dependable long-term service.
Key Advantages
- Precision female crimp contact for ILME CD series connectors.
- 10 A current rating for industrial electrical connections.
- Silver-plated contact surface for dependable electrical performance.
- Suitable for 0.14–0.37 mm² conductors.
- Compatible with conductor sizes from 26–22 AWG.
- Crimp termination provides a secure, vibration-resistant conductor connection.
Key Features
- ILME CD series crimp contact.
- Female contact configuration.
- 10 A rated current.
- 0.14–0.37 mm² conductor cross-section.
- 26–22 AWG wire range.
- Turned copper-alloy contact.
- Silver-plated contact finish.
- Crimp electrical termination.
- 8 mm conductor stripping length.
- Mechanical durability of at least 500 mating cycles.
Reliable Crimp Connections for Industrial Connectors
Crimp contacts provide a robust electrical connection by mechanically compressing the contact barrel around the conductor. When the correct conductor preparation and crimping tool are used, this termination method provides consistent electrical performance and resistance to vibration, making it well suited to industrial machinery and automation installations.
The ILME CDFA0.3 combines turned-contact construction with silver plating to provide a reliable interface within compatible CD series connector inserts. Its small conductor range makes it particularly useful for high-density control and signal wiring where multiple circuits need to be incorporated into a compact heavy-duty connector assembly.
Typical Applications
- ILME CD series heavy-duty connector assemblies.
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated handling systems.
- Control, signal and auxiliary wiring connections.
