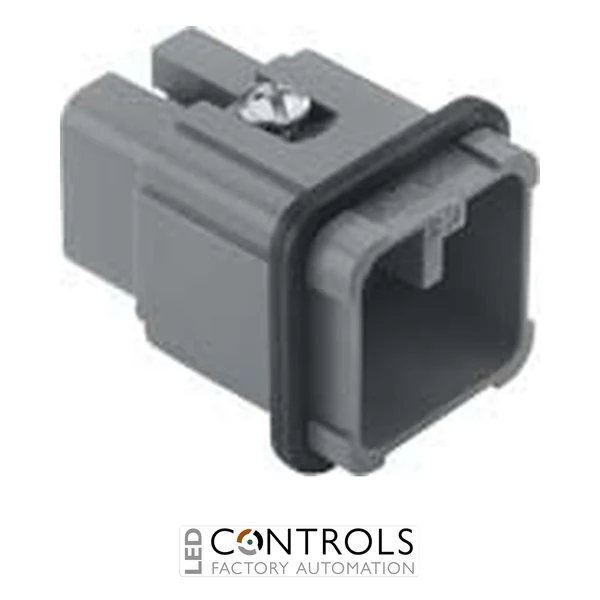

Why Choose the ILME CDM07 Male 7-Pole Crimp Insert?
The ILME CDM07 is a compact male multipole connector insert from the ILME CD series, designed for reliable detachable electrical connections in industrial machinery, automation and control equipment. It provides 7 poles plus protective earth, a rated current of 10 A and a rated voltage of 250 V in the compact 21.21 size.
Designed for crimp connection, the CDM07 accepts separately ordered male crimp contacts, allowing the contact size and plating to be selected to suit the conductor and application. The insert supports compatible conductor sizes from 0.14 mm² to 2.5 mm², providing flexibility for industrial control, signal and auxiliary circuits.
The insert is manufactured from polycarbonate with a UL 94 V-0 flammability rating and is engineered for at least 500 mating cycles. Its compact 21.21 format makes the CDM07 particularly useful where multiple circuits must be connected within a small, robust heavy-duty connector assembly.
Key Advantages
- Compact 7-pole plus protective-earth male connector insert.
- Rated at 10 A and 250 V for industrial electrical connections.
- Crimp termination supports secure and repeatable conductor connections.
- Compatible with conductor sizes from 0.14 mm² to 2.5 mm² using suitable contacts.
- Compact 21.21 size saves space in machinery and equipment.
- Durable polycarbonate construction with UL 94 V-0 flammability rating.
- Designed for at least 500 mating cycles.
Key Features
- ILME CD series multipole insert.
- 7 poles plus PE.
- Male configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Crimp connection.
- Contacts supplied separately.
- 21.21 connector size.
- Polycarbonate insulating body.
- Operating temperature range from -40 °C to +125 °C.
- Mechanical durability of at least 500 mating cycles.
Compact and Flexible Crimp Connectivity
Crimp termination allows conductors to be prepared independently before the completed contacts are inserted into the connector. ILME offers compatible CD-series contacts in different conductor sizes and plating options, allowing the connector assembly to be configured for the wiring requirements of the application.
The CDM07 combines this flexible termination system with a compact 21.21 footprint and seven electrical poles plus protective earth. When paired with suitable contacts, a corresponding female insert and a compatible ILME enclosure, it provides a robust detachable interface for industrial equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- PLC and control-panel connections.
- Production and processing equipment.
- Conveyor and material-handling systems.
- Industrial cable-harness assemblies.
- Detachable power, control and auxiliary connections.
