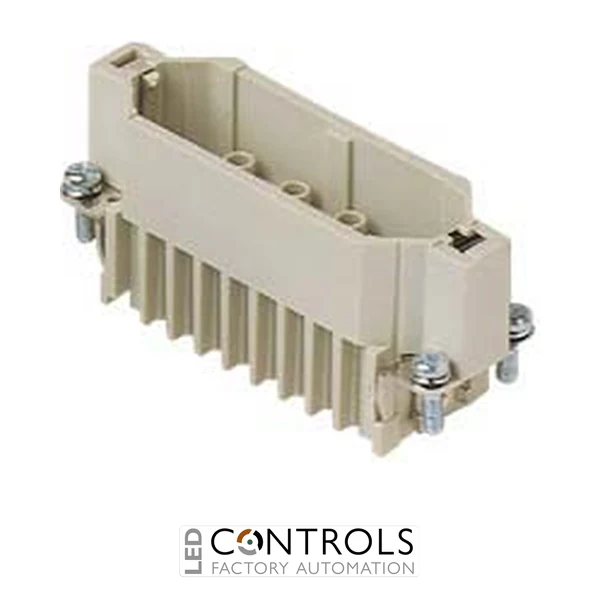

Why Choose the ILME CDM25 Male Insert?
The ILME CDM25 is a robust male multipole connector insert with 25 poles plus protective earth (PE), designed for reliable industrial control, signal and auxiliary electrical connections. Part of the established ILME CD series, it combines a high contact count with crimp termination for efficient, serviceable wiring in machinery, automation equipment and industrial installations.
Rated at 10 A and 250 V, the CDM25 provides a dependable detachable interface for multiple electrical circuits within a single connector assembly. Its crimp termination system uses separately selected male contacts, enabling conductors to be securely terminated before insertion into the connector body and supporting consistent wiring quality during panel and machine assembly.
Designed for the size 66.16 connector format, the CDM25 accommodates 25 poles plus PE in a compact industrial arrangement. When fitted with the appropriate ILME crimp contacts and combined with compatible housings and mating components, it provides a versatile connection solution for complex industrial equipment.
Key Advantages
- 25 poles + PE male connector insert for multicircuit industrial connections.
- 10 A rated current for control, signal and auxiliary circuits.
- Crimp termination supports secure and repeatable conductor connections.
- Designed for size 66.16 industrial connector assemblies.
- High contact count reduces the need for multiple separate connectors.
- Detachable connection simplifies machine installation, commissioning and servicing.
Key Features
- ILME CD series multipole connector insert.
- 25 poles plus protective earth (PE).
- Male connection configuration.
- 10 A rated current.
- 250 V rated voltage.
- Crimp contact termination.
- Designed for size 66.16 connector assemblies.
- Suitable for industrial control, signal and auxiliary wiring.
- Designed to mate with the corresponding compatible female CD-series insert.
Reliable Multipole Connectivity for Industrial Equipment
Multipole connector inserts allow numerous electrical circuits to be combined within one detachable industrial interface. This approach simplifies installation and maintenance while providing an organised connection between control cabinets, machinery modules and field equipment.
The ILME CDM25 combines 25 contact positions with a dedicated protective-earth connection and crimp termination. Suitable male crimp contacts are selected according to the conductor requirements, terminated using appropriate tooling and then installed into the insert, providing a practical solution for repeatable industrial wiring.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated manufacturing systems.
- Multicore control and signal connections.
- Modular machinery requiring detachable electrical interfaces.
