Why Choose the ILME CDM25Z Male Insert?

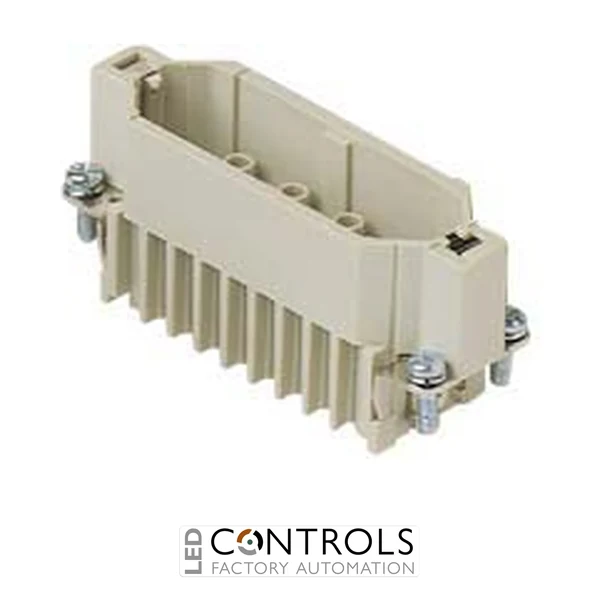

The ILME CDM25Z, manufacturer reference CDM 25 Z, is a male multipole connector insert with 25 poles plus protective earth (PE), designed for industrial machinery and automation connections. Part of the ILME CD series, it uses crimp termination and provides a high-density detachable interface for control, signal and auxiliary electrical circuits.
The CDM25Z is rated at 10 A and 250 V and is specifically identified by ILME with the Z marking. This variant is associated with the size 66.40 connector format and is commonly used in Euromap-related machinery connection applications where the designated Z configuration is required.
Crimp contacts are ordered separately, allowing the appropriate male contact to be selected for the conductor size and application. The CD contact system supports conductor cross-sections from 0.14–2.5 mm², providing flexibility for industrial wiring while maintaining a compact 25-pole + PE connector arrangement.
Key Advantages
- 25 poles + PE for high-density industrial connections.
- Special Z-marked configuration for applications requiring this connector identification.
- 10 A, 250 V electrical rating.
- Crimp termination provides secure and repeatable conductor connections.
- Designed for size 66.40 connector applications.
- Suitable for Euromap-related machinery interfaces and industrial automation systems.
Key Features
- ILME CD series multipole connector insert.
- 25 poles plus protective earth (PE).
- Male connection configuration.
- Crimp connection technology.
- 10 A rated current.
- 250 V rated voltage.
- Z identification marking on the insert.
- Compatible with separately ordered ILME CD male crimp contacts.
- Contact range supports conductors from 0.14–2.5 mm².
- Designed for robust industrial multipole connector assemblies.
High-Density Connections for Industrial Machinery
Multipole connector inserts allow numerous electrical circuits to pass through a single detachable industrial interface, reducing wiring complexity and making machinery easier to install, commission and service. The 25-pole + PE arrangement of the CDM25Z is particularly useful where multiple control and auxiliary circuits need to be grouped within one connector assembly.
The Z-marked CDM25Z provides a distinct configuration for applications requiring the corresponding identification, including Euromap-related machinery interfaces. Suitable male crimp contacts are selected according to conductor size, terminated with the appropriate tooling and installed into the insert to create a secure and serviceable connection.
Typical Applications
- Euromap-related machinery connection interfaces.
- Injection moulding and plastics processing machinery.
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and machine control systems.
- Detachable multicore control and signal connections.
