Why Choose the Ilme CDM2D0.3 Male Crimp Contact?

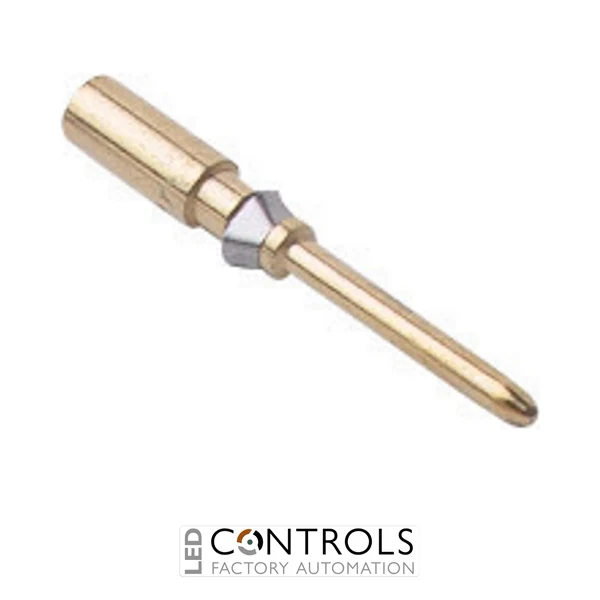

The Ilme CDM2D0.3 is a precision male crimp contact from the Ilme CD series, designed for dependable electrical termination in compatible industrial multipole connector inserts. Rated at 10 A, it is manufactured for small conductor cross-sections from 0.14–0.37 mm², making it particularly suitable for control, signal and auxiliary wiring in industrial machinery and automation equipment.
This contact features a turned gold-plated construction with high-thickness gold plating, providing a high-quality contact interface for applications where reliable electrical performance and repeated mating are important. Its copper-alloy construction combines good electrical conductivity with the mechanical properties required for professional crimp termination.
The CDM2D0.3 accommodates AWG 26–22 conductors, has a conductor slot diameter of 0.9 mm and requires an 8 mm stripping length. When correctly terminated using suitable Ilme-approved crimping tooling and installed in a compatible CD-series insert, it provides a secure and serviceable connection for demanding industrial connector assemblies.
Key Advantages
- 10 A male crimp contact for compatible Ilme industrial connector inserts.
- High-thickness gold plating for a high-quality electrical contact interface.
- Designed for fine conductors from 0.14–0.37 mm².
- Suitable for AWG 26–22 industrial wiring.
- Precision turned-contact construction provides consistent mating geometry.
- Mechanical durability of at least 500 mating cycles supports repeated connection and disconnection.
Key Features
- Ilme CD series crimp contact.
- Male contact configuration.
- 10 A rated current.
- High-thickness gold-plated specification.
- Turned gold-plated contact construction.
- 0.14–0.37 mm² conductor cross-section.
- AWG 26–22 conductor compatibility.
- 0.9 mm conductor slot diameter.
- 8 mm conductor stripping length.
- Copper-alloy main material.
- Contact resistance of ≤ 3 mΩ.
- Mechanical life of at least 500 mating cycles.
Reliable Gold-Plated Crimp Connections for Industrial Equipment
Crimp contacts such as the Ilme CDM2D0.3 create a secure electrical and mechanical termination by compressing the contact barrel around a correctly prepared conductor. Using the specified conductor size and suitable crimping tooling helps provide repeatable termination quality while avoiding the need for screw-terminal connections.
The CDM2D0.3 combines precision turned construction with high-thickness gold plating, making it well suited to professional connector assemblies requiring dependable contact performance. Ilme recommends using homologated crimping tools to achieve the intended connection quality when assembling CD-series contacts.
Typical Applications
- Ilme industrial multipole connector assemblies.
- Factory automation and control systems.
- Industrial machinery and production equipment.
- Fine control and signal wiring.
- Control panel and cabinet interfaces.
- Machine-to-machine electrical connections.
- Robotics and automated production systems.
- OEM machinery and modular equipment wiring.
