Why Choose the Ilme CDM64 Male Insert?

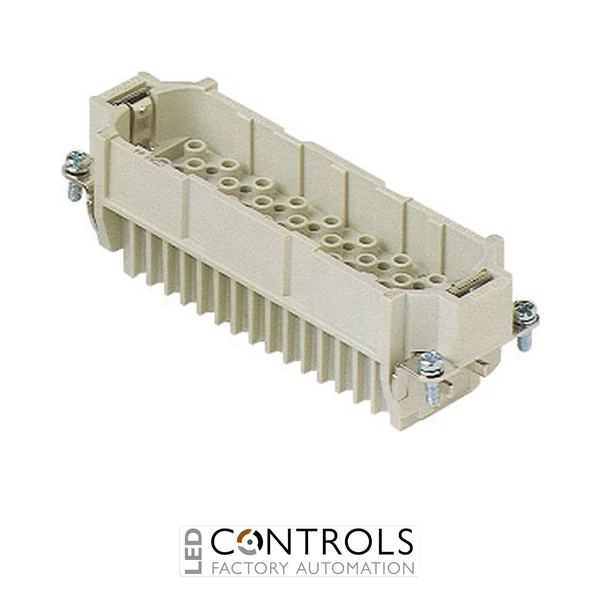

The Ilme CDM64 is a high-density 64-pole plus protective earth male connector insert designed for reliable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CD series, it provides a large number of contact positions within the size 104.27 format, making it ideal for complex equipment where numerous circuits need to pass through a single detachable connector.
Rated at 10 A and 250 V, the CDM64 uses crimp termination with separately selected male contacts, enabling conductor termination to be matched to the wiring requirements of the application. The insert incorporates 64 poles plus protective earth (PE), providing a compact and organised interface for control, signal and auxiliary power connections.
The CDM64 is designed for use with compatible Ilme rectangular industrial connector hoods and housings in the size 104.27 format. When combined with the corresponding female insert and correctly selected crimp contacts, it creates a robust, serviceable connection system for production machinery, factory automation and OEM equipment.
Key Advantages
- High-density 64-pole plus protective earth connector arrangement.
- 10 A, 250 V rating suitable for industrial control, signal and auxiliary circuits.
- Crimp termination provides secure and repeatable conductor connections.
- Large 64-pole capacity reduces the number of separate connectors required.
- Male configuration designed to mate with the corresponding female CD insert.
- Size 104.27 format for compatible Ilme heavy-duty connector enclosures.
- Ideal for high-density machinery and automation wiring.
Key Features
- Ilme CD series industrial connector insert.
- 64 poles + PE contact arrangement.
- Male insert configuration.
- 10 A rated current.
- 250 V rated voltage.
- Crimp contact termination.
- Size 104.27 insert format.
- Dedicated protective earth connection.
- High contact density for complex industrial wiring systems.
- Designed for separately selected compatible Ilme male crimp contacts.
- Suitable for compatible Ilme rectangular industrial connector hoods and housings.
High-Density Connections for Industrial Automation
High-density multipole connectors allow large numbers of electrical circuits to be combined into a single detachable interface. With 64 contact positions plus protective earth, the Ilme CDM64 helps machine builders and panel manufacturers organise complex wiring while reducing the number of individual connector assemblies required between machinery sections.
Crimp termination provides a secure mechanical and electrical connection when the correct conductor, contact and crimping tooling are used. After termination, the male contacts are inserted into their designated cavities within the CDM64, creating an organised connector interface that can be disconnected for equipment installation, maintenance or replacement without disturbing individual field wiring terminations.
Typical Applications
- Industrial machinery control connections.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Electrical control panels and switchgear assemblies.
- Signal and auxiliary power connections.
- OEM machinery and equipment manufacturing.
- Conveyor and material handling systems.
- High-density industrial multipole connector assemblies.
