Why Choose the ILME CDSHF06NC SQUICH Female Connector Insert?

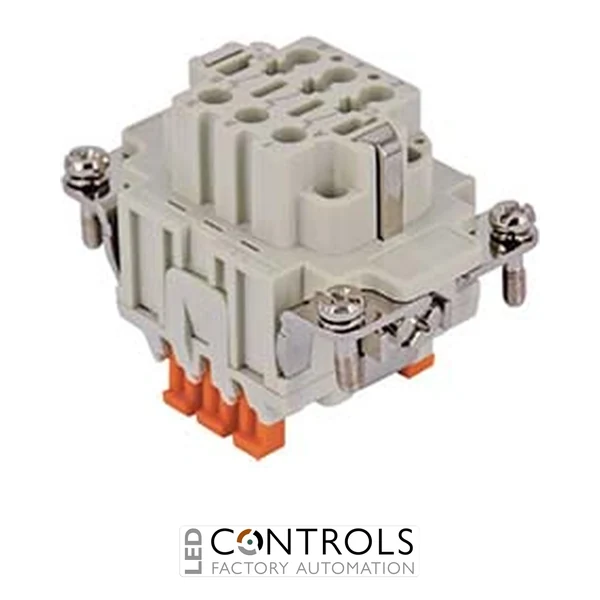

The ILME CDSHF06NC is a specialised 6-pole female SQUICH connector insert designed for industrial control, automation and safety-related electrical connections. Part of the ILME CDSH series, it combines convenient SQUICH spring-clamp termination with an automatic short-circuit function using normally closed (NC) contacts.
The SQUICH connection system enables conductors to be terminated without conventional screw or crimp connections, helping simplify assembly and maintenance. The CDSHF06NC incorporates six female contacts and is intended for applications where selected circuits need to be automatically shorted when the connector is disconnected, providing a practical solution for specialised control and instrumentation interfaces.
With a rated current of 6 A and rated voltage of 250 V, the CDSHF06NC is designed for dependable low-current industrial connections. Its compact multipole construction makes it suitable for machinery and automation systems where reliable connection, rapid wiring and automatic contact switching are required.
Key Advantages
- Specialised 6-pole female connector insert with automatic short-circuit functionality.
- Normally closed (NC) contact arrangement for automatic shorting when disconnected.
- 6 A rated current for industrial control and instrumentation circuits.
- 250 V rated voltage suitable for compatible industrial electrical systems.
- SQUICH spring-clamp termination simplifies conductor installation without crimp contacts.
- Designed for dependable integration into compatible ILME heavy-duty connector assemblies.
Key Features
- ILME CDSH series connector insert.
- SQUICH connection technology.
- Female connection configuration.
- 6-pole contact arrangement.
- 6 A rated current.
- 250 V rated voltage.
- Integrated automatic short-circuit contacts.
- Normally closed (NC) switching configuration.
- Spring-clamp termination supports quick and secure field wiring.
- Designed for industrial control, automation and instrumentation connections.
Automatic Short-Circuit Connectivity for Industrial Systems
Automatic short-circuit connector contacts are useful in specialised industrial circuits where electrical paths must be automatically bridged when a connector is separated. The normally closed arrangement in the ILME CDSHF06NC enables the required contacts to return to their shorted state during disconnection, reducing the need for separate manual bridging arrangements.
Combined with ILME SQUICH spring-clamp technology, the CDSHF06NC provides a convenient and serviceable connection system for machine builders, panel builders and automation engineers. Conductors can be securely terminated without separate crimp contacts, helping reduce installation time while maintaining a robust industrial connection.
Typical Applications
- Industrial control and automation systems.
- Instrumentation and measurement circuits.
- Machine-building and production equipment.
- Electrical control panels and cabinets.
- Circuits requiring automatic shorting when disconnected.
- Industrial equipment requiring removable multipole connections.
