Why Choose the ILME CDSHF09 SQUICH Female Connector Insert?

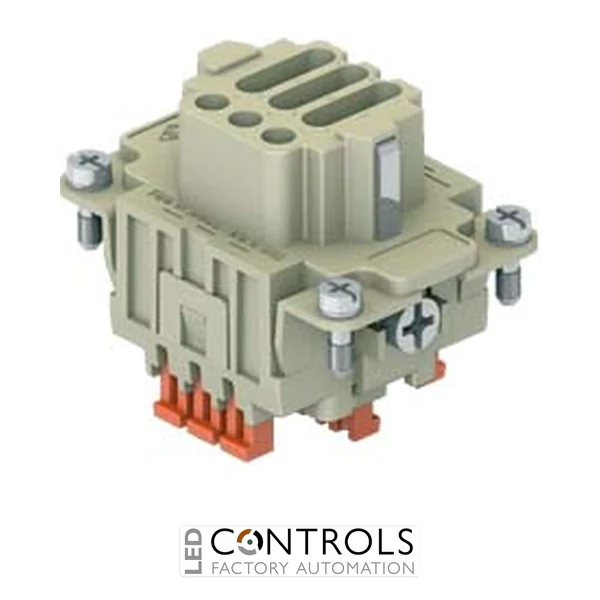

The ILME CDSHF09 is a compact 9-pole female heavy-duty connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CDS series, it uses ILME’s SQUICH spring-clamp termination technology to provide fast, secure conductor connections without conventional screw terminals or separate crimp contacts.
The SQUICH connection system simplifies installation by allowing prepared conductors to be inserted into the terminals and secured through the integrated spring-clamp mechanism. This makes the CDSHF09 particularly suitable for machine builders and panel builders seeking efficient wiring, straightforward maintenance and dependable connections in removable industrial connector assemblies.
With 9 poles plus protective earth, a rated current of 10 A and a rated voltage of 400 V, the CDSHF09 provides a compact solution for power, control and auxiliary circuits. Its 44.27 size allows it to be installed with compatible ILME hoods and housings for robust industrial connectivity.
Key Advantages
- Compact 9-pole plus PE female connector insert for industrial applications.
- 10 A rated current suitable for control and auxiliary circuits.
- 400 V rated voltage for compatible industrial electrical systems.
- SQUICH spring-clamp technology enables fast termination without separate crimp contacts.
- Integrated protective earth connection for industrial connector assemblies.
- Compact 44.27 size for compatible ILME hoods and housings.
Key Features
- ILME CDS series heavy-duty connector insert.
- Female connection configuration.
- 9 poles plus protective earth.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- SQUICH spring-clamp termination.
- No separate crimp contacts required for conductor termination.
- Designed for compatible 44.27 size ILME connector enclosures.
Fast and Reliable SQUICH Industrial Connectivity
ILME SQUICH technology uses spring-clamp terminals to provide secure conductor connections without the need for traditional screw tightening or separately crimped contacts. This helps reduce wiring time while providing a reliable connection suitable for machinery and industrial automation environments where vibration and repeated servicing can occur.
The CDSHF09 combines SQUICH termination with a compact 9-pole arrangement, making it suitable for modular machine wiring and control-panel interfaces. When installed in a compatible ILME hood or housing, the complete connector assembly can provide robust environmental protection appropriate to demanding industrial installations.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- Control, auxiliary power and industrial wiring interfaces.
