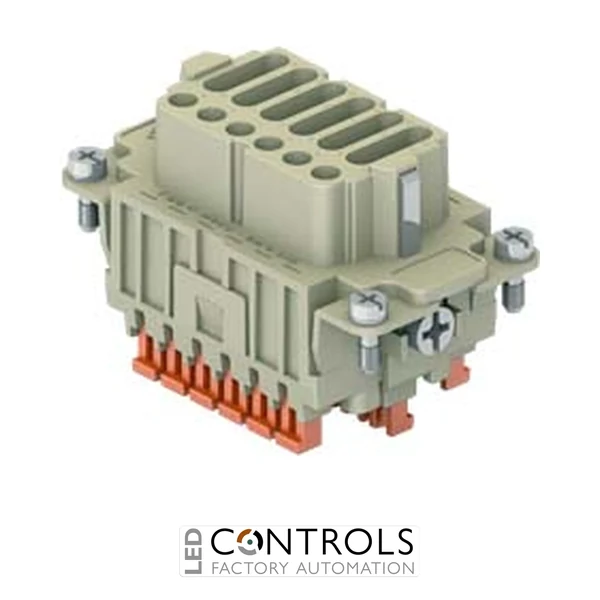

CDSHF18 Ilme Squich Female insert 18 pin 10 amp Size 57.27

CDSHF18 Ilme Squich Female insert 18 pin 10 amp Size 57.27

Ilme CDSHF18 is an 18-pole plus PE female SQUICH spring-terminal connector insert rated at 10 A and 400 V for compatible size 57.27 Ilme industrial connector assemblies.

SKU: CDSHF18Alt SKU: CDSHF 18MPN: CDSHF18
Price
List Price £18.46 ex VAT
Your Price (ex VAT)
£18.46
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £18.46
Trade pricing is personalised to your account

2 in stock (can be backordered)

£18.46

Why Choose the Ilme CDSHF18 SQUICH® Female Insert?

The Ilme CDSHF18 is a high-quality 18-pole plus PE female connector insert from the Ilme CDSH series, designed with SQUICH® spring terminal connection technology for fast, tool-free conductor termination in industrial multipole connector assemblies.

Rated at 10 A and 400 V, the CDSHF18 is engineered for reliable control, signal and power connections in machinery, automation and electrical equipment. Its SQUICH® spring terminals simplify wiring by allowing conductors to be connected without conventional screw tightening, helping reduce installation time while maintaining secure electrical contact.

The insert is built in size 57.27 and accepts conductors from 0.14–2.5 mm² or 26–14 AWG. Precision-turned silver-plated contacts, a 6 kV rated impulse withstand voltage and a wide -40 to +125 °C operating temperature range make it suitable for demanding industrial connector applications.

Key Advantages

  • 18 poles plus protective earth for multipole industrial connections.
  • SQUICH® spring terminal connection enables fast wiring without tools.
  • 10 A, 400 V rating suitable for industrial control and machinery circuits.
  • Accepts conductors from 0.14–2.5 mm².
  • Turned silver-plated contacts provide reliable electrical performance.
  • Designed for at least 500 mating cycles.

Key Features

  • Ilme CDSH series female insert.
  • 18 poles + PE configuration.
  • SQUICH® tool-free spring terminal connection.
  • 10 A rated current.
  • 400 V rated voltage.
  • 6 kV rated impulse withstand voltage.
  • 0.14–2.5 mm² / 26–14 AWG conductor range.
  • Size 57.27 connector insert format.

Fast and Reliable SQUICH® Spring Connection

Ilme SQUICH® technology uses spring terminals to simplify conductor termination without requiring conventional screw tightening. This helps speed up assembly and maintenance while providing a secure connection suitable for vibration-prone industrial machinery and automation systems.

When installed inside a suitable Ilme enclosure, the CDSHF18 can form part of connector assemblies designed to achieve higher environmental protection levels, including IP65, IP66, IP68 and IP69 depending on the complete housing configuration.

Typical Applications

  • Industrial multipole connector assemblies.
  • Automation and control-panel wiring.
  • Machine tools and production equipment.
  • Robotics and material handling systems.
  • Industrial motors and auxiliary circuits.
  • OEM machinery and electrical equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Connection Spring / axial screw
Device Type Insert / Module
Frame Size 57.27
Product Series ILME CD
Contacts 18 poles
Contact Gender Female
HS Code 85366990
Country of Manufacture Italy
Manufacturer Ilme
Series CDSH
Model CDSHF18
Product type Female connector insert
Connection type SQUICH® spring terminal connection without tools
Gender Female
Number of poles 18 poles + PE
Size 57.27
Rated current 10 A
Rated voltage 400 V
Rated impulse withstand voltage 6 kV
Pollution degree 3
UL/CSA rated voltage 600 V
Wire cross-section 0.14–2.5 mm²
AWG range 26–14 AWG
Contact type Turned, silver plated
Protection rating IP20 without enclosure
Mating cycles ≥ 500
Insulation resistance ≥ 10 GΩ
Contact resistance ≤ 3 mΩ
Operating temperature -40 to +125 °C
UL 94 flammability rating V-0
Weight 74 g
Poles 18-pole
IP Rating IP20

Frequently Asked Questions

What is the Ilme CDSHF18 used for?

The CDSHF18 is a female 18-pole plus PE connector insert used in compatible Ilme industrial multipole connector assemblies for machinery, automation and control applications.

What type of connection does the CDSHF18 use?

It uses Ilme SQUICH® spring terminal connection technology, which allows conductors to be terminated without conventional screw tightening tools.

What current and voltage is the CDSHF18 rated for?

The Ilme CDSHF18 is rated at 10 A and 400 V, with a rated impulse withstand voltage of 6 kV.

What wire sizes can the CDSHF18 accept?

The insert accepts conductors from 0.14–2.5 mm², corresponding to approximately 26–14 AWG.

What size is the Ilme CDSHF18 insert?

The CDSHF18 uses the Ilme 57.27 insert size and is intended for compatible Ilme housings and hoods of the corresponding format.

Trusted Industrial Connectivity from Ilme

Ilme SQUICH® connector inserts are designed to help machine builders, panel builders and automation engineers achieve fast installation, reliable conductor termination and dependable multipole connectivity in industrial environments.
