Why Choose the Ilme CDSHF27 SQUICH® Female Insert?

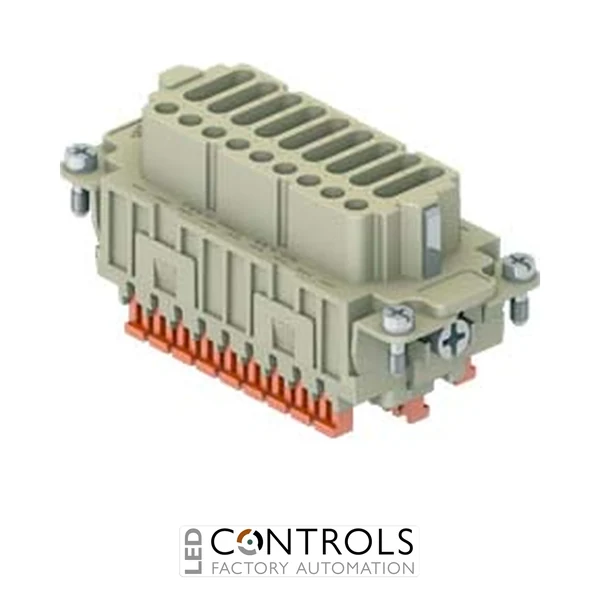

The Ilme CDSHF27 is a high-quality 27-pole plus PE female connector insert from the Ilme CDSH series, designed with SQUICH® spring terminal connection technology for fast and reliable conductor termination in industrial multipole connector assemblies.
Rated at 10 A, the CDSHF27 provides a high-density connection solution for control, signal and auxiliary power circuits in machinery and automation systems. Ilme SQUICH® technology simplifies wiring by using spring terminals instead of conventional screw termination, helping reduce assembly time while maintaining secure electrical connections.
The CDSHF27 uses the Ilme size 77.27 format and is designed for compatible Ilme hoods and housings. Its 27-contact configuration provides substantial connection capacity within a compact industrial connector, making it particularly useful for complex machinery, control systems and OEM equipment requiring numerous circuits through a single detachable interface.
Key Advantages
- 27 poles plus protective earth for high-density industrial connections.
- SQUICH® spring terminal technology supports fast conductor termination.
- 10 A rated current suitable for industrial control and auxiliary circuits.
- Female insert designed for compatible size 77.27 Ilme enclosures.
- Spring-clamp termination helps provide secure connections in industrial environments.
- Ideal for machinery, automation and control systems requiring multiple circuits in one connector.
Key Features
- Ilme CDSH series connector insert.
- Female contact configuration.
- 27 poles + PE.
- 10 A rated current.
- SQUICH® spring terminal connection.
- High-density multipole design for industrial applications.
- Size 77.27 insert format.
- Designed for compatible Ilme industrial connector hoods and housings.
Fast and Reliable SQUICH® Spring Connection
Ilme SQUICH® technology is designed to simplify industrial connector wiring by using spring terminals that maintain secure conductor contact without conventional screw tightening. The system supports efficient assembly and maintenance while providing the connection reliability required in machinery and automation installations.
With 27 poles plus PE, the CDSHF27 enables many individual circuits to be routed through a single detachable connector interface. This can simplify machine installation, modular equipment construction and servicing compared with individually wired connections.
Typical Applications
- Industrial multipole connector assemblies.
- Automation and control-panel systems.
- Production and processing machinery.
- Robotics and material handling equipment.
- Machine tools and modular equipment.
- OEM machinery and industrial electrical systems.
