Why Choose the Ilme CDSHF27N SQUICH® Female Insert?

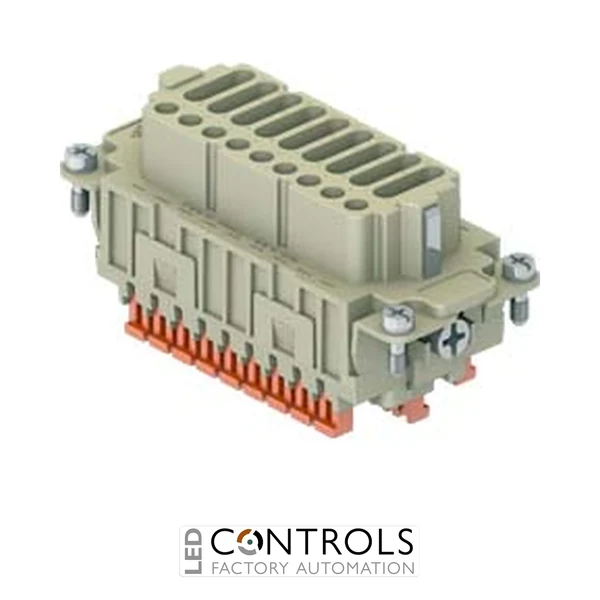

The Ilme CDSHF27N is a high-density 27-pole plus protective earth female connector insert designed for use as the second insert in a 54-pole Ilme CDSH SQUICH® connector arrangement. Its contact positions are numbered 28–54, and the insert is designed for compatible size 77.62 heavy-duty rectangular connector enclosures.
Rated at 10 A and 400 V, the CDSHF27N uses Ilme's SQUICH® spring terminal connection, allowing conductors to be terminated without conventional screw tightening or separate crimp contacts. The actuator-button system provides a convenient tool-free connection method and accepts conductors from 0.14–2.5 mm² (AWG 26–14).
With a rated impulse withstand voltage of 6 kV, pollution degree 3 and at least 500 mating cycles, the CDSHF27N is engineered for demanding industrial service. Its polycarbonate insulating body, silver-plated copper-alloy contacts and wide -40 °C to +125 °C operating temperature range make it a dependable choice for machinery, automation and control installations requiring high connection density.
Key Advantages
- 27 poles plus protective earth with contact numbering 28–54 for a 54-pole connector arrangement.
- SQUICH® tool-free spring termination simplifies conductor installation and maintenance.
- 10 A at 400 V rating suits a wide range of industrial control and auxiliary circuits.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Silver-plated contacts provide reliable electrical connection performance.
- Designed for size 77.62 high-density Ilme connector assemblies.
Key Features
- Ilme CDSH series SQUICH® connector insert.
- 27 poles plus PE, numbered 28–54.
- Female contact configuration.
- SQUICH® spring terminal connection without tools.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- 0.14–2.5 mm² conductor capacity.
- AWG 26–14 conductor compatibility.
- Turned silver-plated contacts.
- Polycarbonate insulating body in RAL 7032 grey.
- IP20 protection without enclosure.
- At least 500 mating cycles.
- UL 94 V-0 flammability classification.
The Ilme SQUICH® connection system uses spring terminals with individual actuator buttons, allowing prepared conductors to be connected without screw tightening or separate crimp contacts. This helps streamline assembly and maintenance while maintaining secure conductor retention in industrial machinery and control installations.
The CDSHF27N is specifically intended for positions 28–54 in a compatible 54-pole size 77.62 arrangement. Used together with the corresponding positions 1–27 insert and compatible male components, it provides a high-density detachable interface for complex industrial wiring while retaining straightforward conductor access and servicing.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density control and signal wiring.
- Machine-to-machine electrical interfaces.
- Control panels and electrical cabinets.
- Robotics and automated manufacturing equipment.
- Conveyor and material handling systems.
- OEM machinery and modular equipment assemblies.
