Why Choose the Ilme CDSHF42 SQUICH® Female Insert?

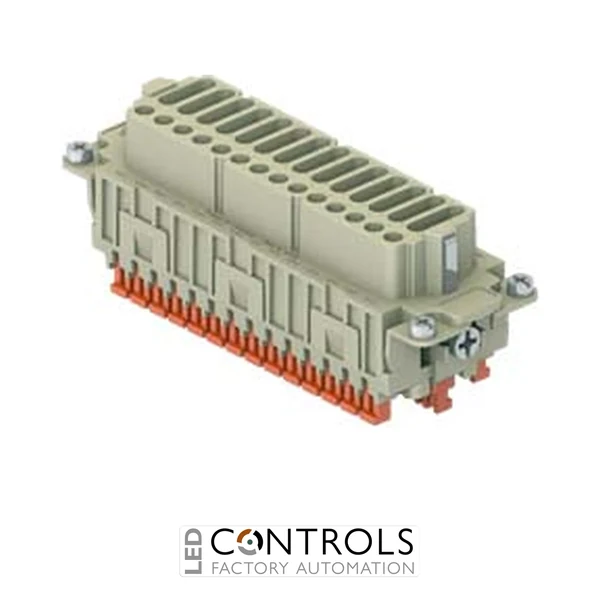

The Ilme CDSHF42 is a high-density 42-pole plus protective earth female connector insert designed for dependable multipole connections in industrial machinery, automation systems and control equipment. Part of the Ilme CDSH series, it combines a size 104.27 format with the convenient SQUICH® spring terminal connection system.
Rated at 10 A and 400 V, the CDSHF42 provides 42 female contact positions plus protective earth in a single heavy-duty rectangular connector insert. Its SQUICH® connection technology allows prepared conductors to be connected directly to integrated spring terminals, eliminating the need for separately purchased crimp contacts and conventional screw tightening.
The insert accommodates conductor cross-sections from 0.14–2.5 mm² and is engineered for reliable service in demanding industrial environments. With a 6 kV rated impulse withstand voltage, durable polycarbonate construction and at least 500 mating cycles, the CDSHF42 provides an efficient solution for high-density machine and control wiring.
Key Advantages
- 42 poles plus protective earth provide high connection density in one insert.
- SQUICH® spring terminal technology enables fast conductor termination without conventional screw tightening.
- 10 A rated current for industrial control, signal and auxiliary circuits.
- 400 V rated voltage with a 6 kV impulse withstand rating.
- Accepts conductors from 0.14–2.5 mm² for flexible panel and machine wiring.
- Size 104.27 format integrates with compatible Ilme heavy-duty connector enclosures.
Key Features
- Ilme CDSH series SQUICH® connector insert.
- 42 poles plus protective earth (42+PE).
- Female contact configuration.
- SQUICH® spring terminal connection.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- 0.14–2.5 mm² conductor capacity.
- Suitable for AWG 26–14 conductors.
- Integrated silver-plated contacts.
- Durable polycarbonate insulating body.
- IP20 protection without an enclosure.
- At least 500 mating cycles.
- UL 94 V-0 flammability classification.
Ilme SQUICH® technology uses integrated spring terminals and individual actuator buttons to simplify conductor termination. Prepared conductors can be inserted directly into the terminal positions without separately crimping contacts, helping reduce assembly operations while maintaining secure conductor retention for industrial installations.
With 42 poles plus protective earth in a size 104.27 insert, the CDSHF42 provides a compact way to route numerous circuits through one detachable connector assembly. When paired with the corresponding male insert and a compatible Ilme hood or housing, it creates a serviceable high-density interface for machinery, control cabinets and modular production equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density control and signal wiring.
- Machine-to-machine electrical interfaces.
- Control panels and electrical cabinets.
- Robotics and automated manufacturing systems.
- Conveyor and material handling equipment.
- OEM machinery and modular equipment assemblies.
