Why Choose the Ilme CDSHF42N SQUICH® Female Insert?

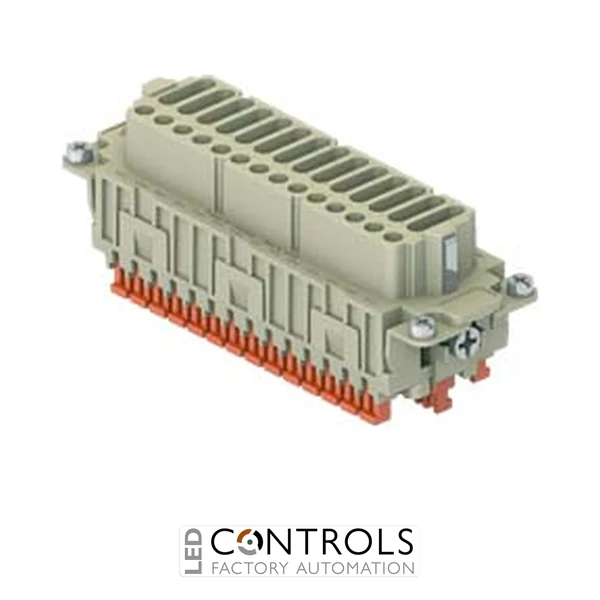

The Ilme CDSHF42N is a 42-pole plus protective earth female industrial connector insert designed as the second numbered section, 43–84, for high-density size 104.62 connector assemblies. Part of the Ilme CDSH series, it uses the innovative SQUICH® spring terminal connection, allowing conductors to be terminated without conventional screw or crimp contact installation.
Rated at 10 A and 400 V, the CDSHF42N has a rated impulse withstand voltage of 6 kV and pollution degree 3. It accepts conductors from 0.14–2.5 mm² / AWG 26–14 and incorporates turned, silver-plated contacts for dependable industrial electrical connections.
The CDSHF42N is specifically numbered 43–84 and is intended for the size 104.62 configuration, where it complements the corresponding 1–42 insert section to provide a high-density connector arrangement. With at least 500 mating cycles, a wide -40 to +125 °C operating range and tool-free SQUICH® termination, it is well suited to machinery, automation and control-system wiring.
Key Advantages
- 42 poles plus protective earth with pole numbering from 43–84.
- Designed for high-density size 104.62 connector assemblies.
- SQUICH® spring terminal connection without tools simplifies conductor termination.
- 10 A, 400 V rating for industrial electrical, control and signal circuits.
- Accepts conductors from 0.14–2.5 mm² / AWG 26–14.
- Integrated turned silver-plated female contacts.
- 6 kV impulse withstand voltage with pollution degree 3.
- Designed for at least 500 mating cycles.
Key Features
- Ilme CDSH series industrial connector insert.
- SQUICH® tool-free spring terminal technology.
- Female insert configuration.
- 42 poles + PE in this insert section.
- Pole numbering 43–84.
- Designed as part of an 84-pole plus PE size 104.62 arrangement.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 600 V UL/CSA rated voltage.
- 0.14–2.5 mm² / AWG 26–14 conductor range.
- Turned silver-plated contacts.
- Self-extinguishing UL 94 V-0 polycarbonate construction.
- Operating temperature from -40 to +125 °C.
Tool-Free SQUICH® Termination for High-Density Wiring
Ilme's SQUICH® spring terminal technology is designed to simplify connector wiring by allowing prepared conductors to be terminated without conventional screw tightening or separate crimp contacts. The actuator-based spring connection provides secure conductor retention while helping reduce assembly time during machine building, panel construction and maintenance.
The CDSHF42N carries contact numbering 43–84 and is intended for use within the larger size 104.62 configuration. This arrangement allows a very high number of circuits to be consolidated into one industrial connector enclosure, making it particularly useful for complex machinery and automation systems where connector space and wiring organisation are important.
Typical Applications
- High-density industrial machinery connections.
- Factory automation and production equipment.
- Electrical control panels and switchgear assemblies.
- Robotics and automated handling systems.
- Control and signal circuit connections.
- OEM machinery and equipment manufacturing.
- Conveyor and material handling systems.
- Detachable multipole wiring between machine sections.
