Why Choose the Ilme CDSHM06NC SQUICH® Male Insert?

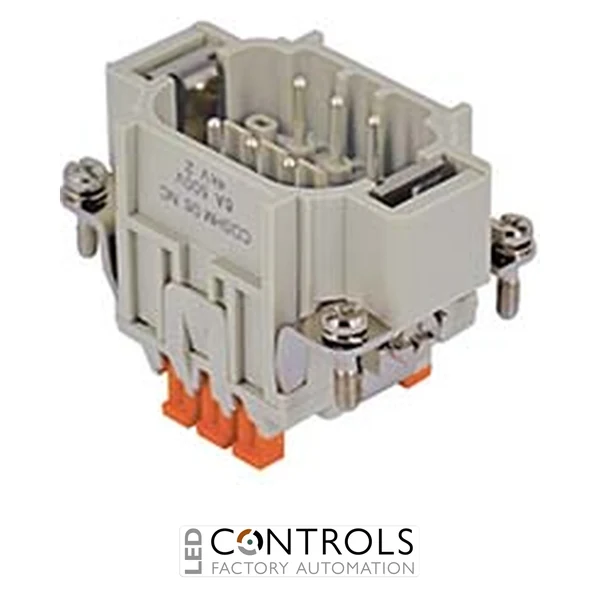

The Ilme CDSHM06NC is a 6-pole plus protective earth male industrial connector insert from the CDSH NC series, designed for applications requiring SQUICH® spring termination and an AutoShort NC contact element. Rated at 6 A and 250 V, it provides a compact and serviceable connection solution for measurement, control and industrial equipment.
Ilme's SQUICH® spring terminal connection allows prepared conductors to be connected without conventional screw tightening or separate crimp contacts. The CDSHM06NC accepts conductors from 0.14–2.5 mm² / AWG 26–14 and incorporates turned, silver-plated male contacts for dependable electrical performance.
The insert is manufactured in the size 44.27 format and features an AutoShort NC contact element. With a rated impulse withstand voltage of 6 kV, pollution degree 3, an operating temperature range from -40 to +125 °C and at least 500 mating cycles, it is engineered for professional industrial connector installations.
Key Advantages
- 6 poles plus protective earth in a compact size 44.27 insert.
- Features an integrated AutoShort NC contact element.
- SQUICH® spring terminal connection without tools simplifies conductor termination.
- 6 A, 250 V rating for compatible industrial circuits.
- Accepts conductors from 0.14–2.5 mm² / AWG 26–14.
- Integrated turned silver-plated male contacts.
- Wide -40 to +125 °C operating temperature range.
- Designed for at least 500 mating cycles.
Key Features
- Ilme CDSH NC series connector insert.
- Male insert configuration.
- 6 poles + PE.
- AutoShort NC contact element.
- SQUICH® spring terminal connection without tools.
- 6 A rated current.
- 250 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 600 V UL/CSA rated voltage.
- 0.14–2.5 mm² / AWG 26–14 conductor range.
- Turned silver-plated contacts.
- Size 44.27 insert format.
- Self-extinguishing UL 94 V-0 polycarbonate construction.
SQUICH® Termination with AutoShort NC Functionality
The CDSHM06NC combines Ilme's SQUICH® spring terminal technology with an AutoShort normally closed contact element. SQUICH® provides actuator-operated spring termination, allowing conductors to be connected directly to the insert without conventional screw terminals or separately installed crimp contacts.
The CDSH NC design is particularly suited to specialised measurement and control connections where normally closed shorting functionality is required as part of the connector system. Its six contact positions plus protective earth, compact size 44.27 format and direct spring termination make the CDSHM06NC a practical solution for professional industrial wiring and measurement applications.
Typical Applications
- Industrial measurement and instrumentation connections.
- Current-transformer and measurement circuits.
- Industrial control and monitoring equipment.
- Electrical control panels and switchgear assemblies.
- Factory automation equipment.
- OEM machinery and electrical systems.
- Detachable industrial wiring connections.
- Applications requiring normally closed AutoShort functionality.
