Why Choose the ILME CDSHM18 SQUICH® Male Insert?

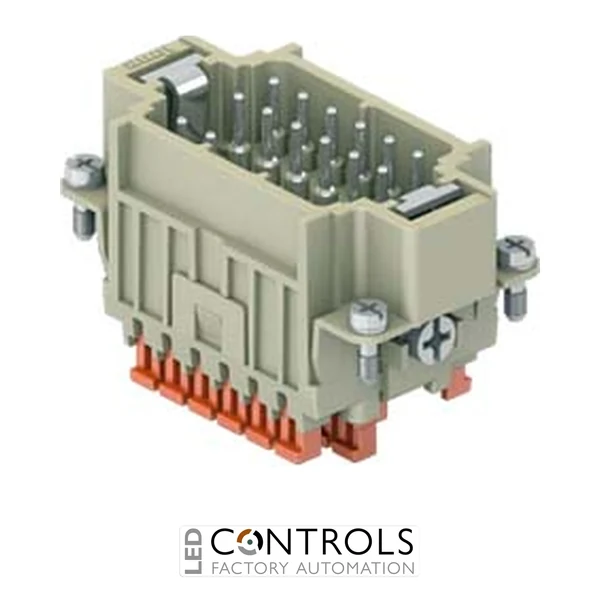

The ILME CDSHM18, manufacturer reference CDSHM 18, is a high-density male multipole connector insert with 18 poles plus protective earth (PE). Part of the ILME CDSH series, it features ILME's SQUICH® spring terminal connection, providing fast conductor termination without conventional screw terminals or separately crimped contacts.
Rated at 10 A and 400 V, the CDSHM18 is designed for demanding industrial control, signal and auxiliary wiring applications. Its spring-terminal technology provides a practical solution for machine builders and panel builders who need efficient installation while retaining a secure, serviceable multipole electrical interface.
Designed for size 57.27 industrial connector assemblies, the CDSHM18 combines 18 male contact positions plus PE within a compact format. Its high contact density and SQUICH® termination system make it particularly suitable for machinery and automation installations where numerous circuits must be connected through a single removable connector.
Key Advantages
- High-density 18 poles + PE male connector insert.
- SQUICH® spring terminals simplify conductor termination.
- 10 A, 400 V electrical rating for industrial applications.
- No separate crimp contacts are required for conductor termination.
- Designed for size 57.27 industrial connector assemblies.
- Detachable multipole design simplifies machine installation and servicing.
Key Features
- ILME CDSH series high-density connector insert.
- 18 poles plus protective earth (PE).
- Male connection configuration.
- SQUICH® spring terminal technology.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Designed for size 57.27 connector assemblies.
- Spring terminals accommodate conductors up to 2.5 mm².
- Suitable for industrial machinery, control and automation systems.
Fast Industrial Wiring with SQUICH® Technology
ILME SQUICH® technology uses spring terminals to provide a quick and secure alternative to conventional screw and crimp termination. Conductors can be connected directly to the insert, helping reduce assembly operations while maintaining a reliable electrical interface for industrial equipment.
With 18 poles plus PE, the CDSHM18 provides substantial connection capacity within a single size 57.27 connector assembly. This makes it well suited to complex machinery where numerous control, signal and auxiliary circuits need to be grouped into a compact, detachable and serviceable connection point.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated manufacturing systems.
- Industrial control and signal wiring.
- Modular machinery requiring high-density detachable connections.
