Why Choose the ILME CDSHM27 SQUICH® 27-Pole + PE Male Insert?

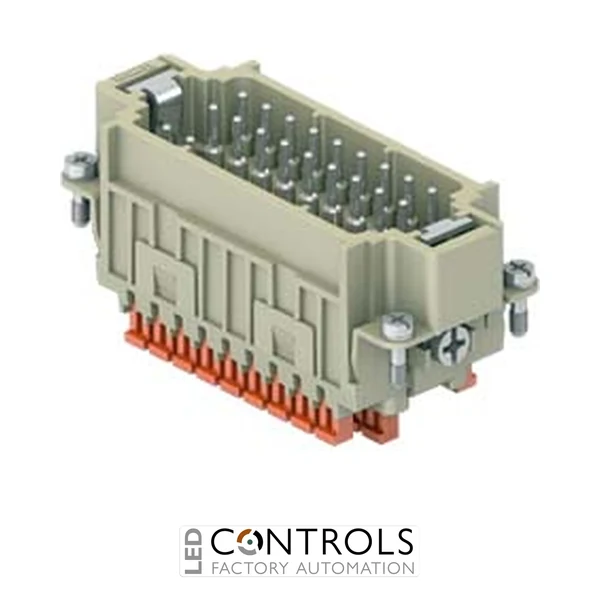

The ILME CDSHM27 is a high-density 27-pole + PE male connector insert designed for reliable industrial machinery, automation and control connections. Part of the ILME CDSH series, it features the innovative SQUICH® spring terminal connection system, allowing conductors to be terminated quickly without conventional screw terminals or separate crimp contacts.
Designed for size 77.27 heavy-duty connector assemblies, the CDSHM27 combines 27 electrical poles with a protective earth connection. Its SQUICH® terminals accept conductors from 0.14–2.5 mm², equivalent to AWG 26–14, while integral silver-plated contacts provide dependable electrical performance for demanding industrial installations.
The CDSHM27 is rated at 10 A and 400 V, with a UL/CSA rated voltage of 600 V. With a wide operating temperature range of -40–125 °C, minimum mechanical durability of 500 mating cycles and protection up to IP69 when installed in a suitable enclosure, it provides a practical solution for robust, high-density industrial connectivity.
Key Advantages
- High-density 27-pole + PE male industrial connector insert.
- SQUICH® tool-free spring terminal technology simplifies conductor termination.
- 10 A, 400 V rating for industrial control, signal and auxiliary circuits.
- Accepts conductors from 0.14–2.5 mm², equivalent to AWG 26–14.
- Integral silver-plated contacts eliminate the need for separate crimp contacts.
- Size 77.27 format fits compatible ILME heavy-duty connector enclosures.
Key Features
- ILME CDSH series male insert.
- 27 poles + protective earth (PE).
- SQUICH® spring terminal connection without tools.
- 10 A rated current.
- 400 V rated voltage.
- 600 V UL/CSA rated voltage.
- 0.14–2.5 mm² conductor range.
- Suitable for AWG 26–14 conductors.
- Integral silver-plated contacts.
- Minimum 500 mating cycles.
Fast, Tool-Free SQUICH® Connections for Industrial Machinery
ILME's SQUICH® technology is designed to simplify connector wiring by using spring terminals that can be operated without conventional conductor termination tools. Prepared conductors are inserted directly into the terminal system, providing a secure spring-pressure connection while reducing assembly time compared with connector systems that require individual crimp contacts.
With 27 poles plus protective earth in a compact size 77.27 format, the CDSHM27 is particularly suitable for machinery requiring numerous control, signal and auxiliary connections through a single detachable interface. Its 0.14–2.5 mm² conductor range, silver-plated contacts and robust industrial construction make it suitable for both new equipment and maintenance-intensive applications.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- PLC and industrial control systems.
- Control panels and electrical cabinets.
- Robotics and automated handling systems.
- High-density control and auxiliary cable assemblies.
