Why Choose the ILME CDSHM27N SQUICH® 27-Pole + PE Male Insert?

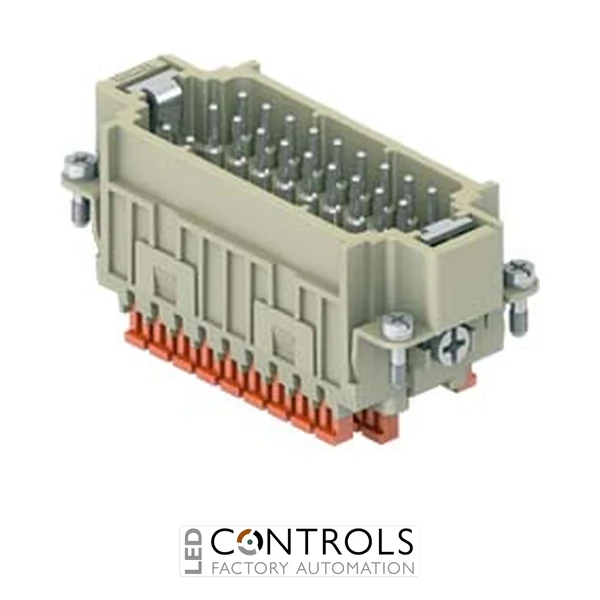

The ILME CDSHM27N is a high-density 27-pole + PE male connector insert designed as the second section of an ILME CDSH SQUICH® multipole connector assembly. The N version carries pole numbering 28–54 and is intended for use within a size 77.62 connector arrangement, where two 27-pole sections provide a complete 54-pole + PE interface.
Part of the ILME CDSH series, the CDSHM27N features SQUICH® spring terminal connection without tools. Conductors are terminated directly into the insert without separate crimp contacts, helping reduce wiring time while providing secure spring-pressure connections. It accepts conductor cross-sections from 0.14–2.5 mm², equivalent to AWG 26–14.
The CDSHM27N is rated at 10 A and 400 V, with a 6 kV rated impulse withstand voltage, pollution degree 3 and a UL/CSA rated voltage of 600 V. Turned silver-plated contacts, polycarbonate construction and an operating temperature range of -40–125 °C make it suitable for demanding industrial machinery, automation and control applications.
Key Advantages
- 27-pole + PE male insert with dedicated pole numbering 28–54.
- Designed for the second section of a 54-pole + PE size 77.62 connector assembly.
- SQUICH® spring terminal technology allows conductor termination without conventional crimping or screw terminals.
- 10 A, 400 V rating for industrial control, signal and auxiliary circuits.
- Accepts conductors from 0.14–2.5 mm², equivalent to AWG 26–14.
- Integral turned silver-plated contacts provide dependable electrical performance.
Key Features
- ILME CDSH series male insert.
- 27 poles + protective earth (PE).
- Pole numbering 28–54.
- SQUICH® spring terminal connection without tools.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 0.14–2.5 mm² conductor range.
- Turned silver-plated contacts.
- Designed for a size 77.62 complete connector assembly.
High-Density SQUICH® Connections for Industrial Machinery
The ILME CDSHM27N is specifically configured as the 28–54 pole section of a high-density CDSH connector arrangement. When installed alongside the corresponding first 27-pole section, the complete size 77.62 assembly provides 54 electrical poles plus protective earth, allowing numerous control, signal and auxiliary circuits to be consolidated into one detachable industrial connector.
SQUICH® technology uses spring terminals to provide fast conductor termination without separate removable crimp contacts. The CDSHM27N accepts conductors from 0.14–2.5 mm² and incorporates turned silver-plated male contacts, providing a practical and serviceable connection system for machine builders, control panel manufacturers and industrial automation installations.
Typical Applications
- High-density industrial machinery connections.
- Factory automation and production equipment.
- PLC and industrial control systems.
- Control panels and electrical cabinets.
- Robotics and automated handling equipment.
- 54-pole control, signal and auxiliary cable assemblies.
