Why Choose the ILME CDSHM42 Male Insert?

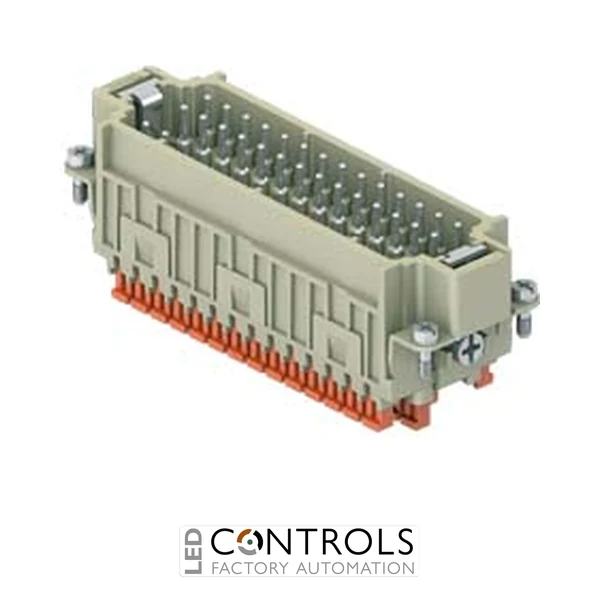

The ILME CDSHM42 is a high-performance 42 pin male Squich insert designed for reliable electrical connections in ILME heavy-duty rectangular connector systems. Manufactured by ILME, this insert provides a secure and efficient connection solution for industrial automation, control equipment and machinery applications requiring compact multi-contact connectivity.
Featuring ILME’s Squich spring connection technology, the CDSHM42 allows fast and reliable conductor termination without conventional crimping tools. The innovative connection system combines installation efficiency with dependable electrical performance, making it suitable for demanding industrial environments.
With a 42 pin male configuration, 10 A rating and compatibility with Size 104.27 connector housings, the ILME CDSHM42 is ideal for control panels, industrial machinery and automation systems requiring high-density connector solutions.
Key Advantages
- Reliable 42 pin male insert for ILME rectangular connector systems.
- Squich spring connection technology enables quick and secure wiring.
- Eliminates the need for traditional crimping during conductor installation.
- High-density contact arrangement for complex industrial applications.
- Compatible with ILME Size 104.27 heavy-duty connector housings.
- Designed for dependable operation in industrial automation environments.
Key Features
- ILME CDSHM42 connector insert.
- 42 pin male connection.
- Squich spring termination system.
- 10 A rated current.
- Size 104.27 rectangular connector format.
- Designed for heavy-duty industrial connector assemblies.
- Suitable for control, automation and machinery wiring.
Reliable Industrial Connectivity with ILME
ILME Squich connector inserts are designed to simplify industrial wiring while maintaining secure and reliable electrical connections. The CDSHM42 combines high-density connectivity with innovative spring termination technology, reducing installation effort and improving connection consistency.
The robust design and compatibility with ILME heavy-duty connector housings make the CDSHM42 a practical choice for engineers requiring efficient and dependable connectivity in automation and machinery applications.
Typical Applications
- Industrial automation systems.
- Machine control panels.
- Production and processing equipment.
- Robotics and manufacturing machinery.
- Electrical cabinets and control systems.
- OEM machinery connector assemblies.
