Why Choose the ILME CDSHM42N Male Insert?

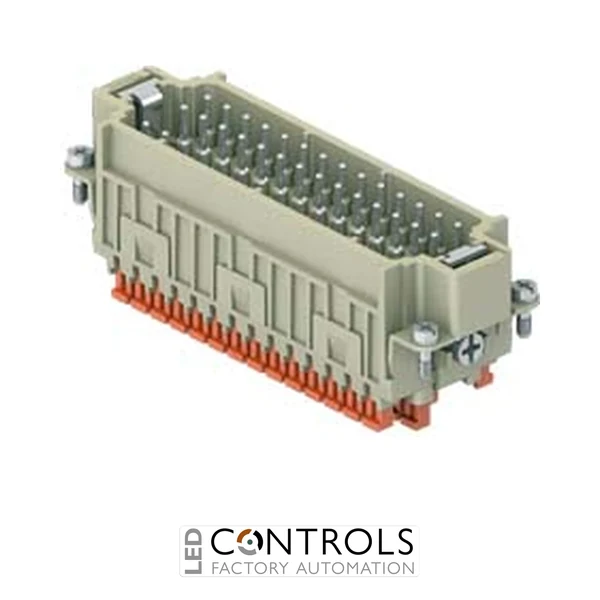

The ILME CDSHM42N is a high-quality 42 pin male Squich insert designed for reliable electrical connections in ILME heavy-duty rectangular connector systems. Manufactured by ILME, this insert provides a secure and efficient connection solution for industrial automation, control equipment and machinery applications requiring high-density multi-contact connectivity.
Featuring ILME’s Squich spring connection technology, the CDSHM42N enables fast and reliable conductor termination without conventional crimping tools. This innovative connection method combines easy installation with dependable electrical performance for demanding industrial environments.
With a 42 pin male configuration, 10 A rating and compatibility with Size 104.62 connector housings, the ILME CDSHM42N is designed for complex control systems and industrial applications requiring organised multi-pole connectivity.
Key Advantages
- Reliable 42 pin male insert for ILME rectangular connector systems.
- Squich spring connection technology provides quick and secure wiring.
- Reduces installation time compared with traditional crimp termination methods.
- High-density contact arrangement for advanced industrial applications.
- Compatible with ILME Size 104.62 heavy-duty connector housings.
- Designed for dependable operation in automation and machinery environments.
Key Features
- ILME CDSHM42N connector insert.
- 42 pin male connection.
- Squich spring termination system.
- 10 A rated current.
- Size 104.62 rectangular connector format.
- Contact numbering: No 43–84.
- Designed for heavy-duty industrial connector assemblies.
Reliable Industrial Connectivity with ILME
ILME Squich connector inserts are engineered to simplify industrial wiring while maintaining secure and reliable electrical connections. The CDSHM42N combines high-density connectivity with advanced spring termination technology, helping improve installation efficiency and connection consistency.
The robust construction and compatibility with ILME heavy-duty connector housings make the CDSHM42N a dependable choice for engineers requiring efficient connectivity in industrial automation, machinery and control applications.
Typical Applications
- Industrial automation systems.
- Machine control panels.
- Production and processing equipment.
- Robotics and manufacturing machinery.
- Electrical cabinets and control systems.
- OEM machinery connector assemblies.
