Why Choose the ILME CDSM27N Male Connector Insert?

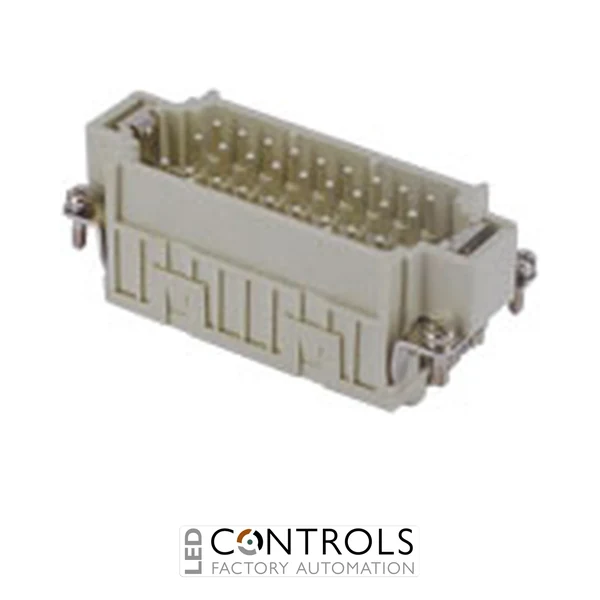

The ILME CDSM27N is a high-density 27-pole plus earth male heavy-duty connector insert designed for industrial machinery, automation equipment and control systems. Part of the ILME CDS series, this N-version insert carries contact positions 28–54 and is designed to work alongside the CDSM27 insert to create a complete 54-pole plus protective earth connector arrangement.
The CDSM27N uses spring terminal connections, allowing conductors to be securely terminated without separately ordered crimp contacts. Integrated turned silver-plated contacts provide reliable electrical performance, while the spring-clamp termination system supports efficient assembly and maintenance in machine-building, panel-building and factory automation applications.
With a rated current of 10 A, rated voltage of 400 V and a rated impulse withstand voltage of 6 kV, the CDSM27N provides dependable high-density connectivity for control, signal and auxiliary circuits. Its 77.62 size accommodates the paired 54-pole arrangement within compatible ILME connector enclosures.
Key Advantages
- High-density 27-pole plus PE male insert covering contact positions 28–54.
- Designed with CDSM27 to create a 54-pole plus PE connector arrangement.
- 10 A rated current suitable for industrial control and auxiliary circuits.
- 400 V rated voltage with a 6 kV impulse withstand rating.
- Spring terminal connection eliminates the need for separately installed crimp contacts.
- Integrated turned silver-plated contacts provide dependable electrical connectivity.
Key Features
- ILME CDS series heavy-duty multipole connector insert.
- Male connection configuration.
- 27 poles plus protective earth within a paired 54-pole arrangement.
- Contact numbering 28–54.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Spring terminal connection technology.
- Accepts conductors from 0.14–2.5 mm².
- Compatible with AWG 26–14 conductors.
- Integrated turned silver-plated contacts.
Reliable High-Density Spring-Terminal Connectivity
Spring-terminal connector inserts maintain consistent pressure on installed conductors to create secure electrical connections without separately crimped contacts. This termination method helps simplify wiring and servicing while providing dependable performance in industrial machinery and automation environments where vibration and repeated maintenance can occur.
The CDSM27N is the male insert covering positions 28–54 in the ILME CDS 54-pole configuration. Used with the corresponding CDSM27 insert covering positions 1–27, it provides a compact 54-pole plus PE interface suitable for machines and control systems requiring a large number of circuits within a removable industrial connector assembly.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- High-density control, signal and auxiliary power connections.
