Why Choose the ILME CDYF07 AXYR® Female Insert?

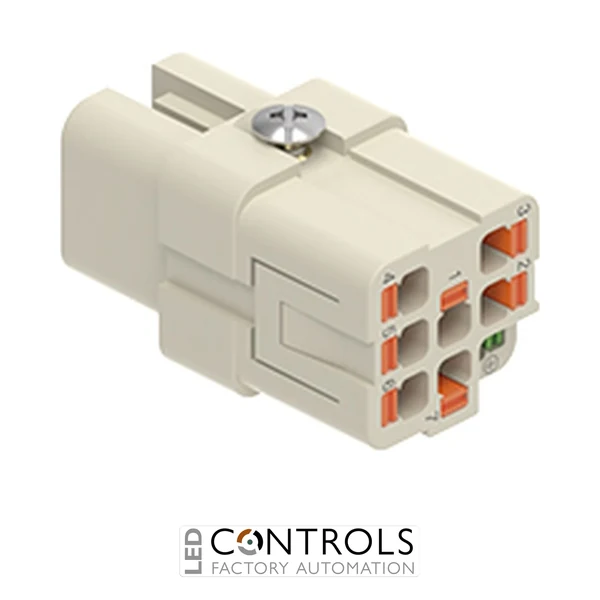

The ILME CDYF07, manufacturer reference CDYF 07, is a compact female multipole connector insert with 7 poles plus protective earth (PE). Part of the ILME CDY AXYR® range, it uses a high-density spring push-in connection system that enables fast, tool-less conductor termination for industrial machinery, automation and control applications.
The CDYF07 is rated at 10 A and 250 V according to EN 61984, with a rated impulse withstand voltage of 4 kV and pollution degree 3. An additional EN 61984 characteristic of 10 A at 230/400 V, 4 kV, pollution degree 2 is specified, while its UL/CSA rated voltage is 600 V.
Designed for compact size 21.21 connector assemblies, the CDYF07 incorporates built-in silver-plated copper-alloy contacts. The AXYR® terminals accept unprepared conductors from 0.14–2.5 mm² and prepared conductors with ferrules from 0.14–1.5 mm², providing a versatile and serviceable connection solution without separate crimp contacts.
Key Advantages
- Compact 7 poles + PE female connector insert.
- AXYR® high-density spring push-in connection enables tool-less termination.
- 10 A, 250 V EN 61984 rating for industrial applications.
- Accepts unprepared conductors from 0.14–2.5 mm².
- Built-in silver-plated contacts eliminate the need to order separate crimp contacts.
- Compact size 21.21 design for space-conscious machinery and automation installations.
Key Features
- ILME CDY series connector insert.
- AXYR® connection technology.
- 7 poles plus protective earth (PE).
- Female connection configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Tool-less spring push-in termination.
- Built-in silver-plated copper-alloy contacts.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Fast Tool-Less Connections with AXYR® Technology
ILME AXYR® technology combines a high-density spring clamp with push-in conductor termination, allowing suitable conductors to be connected directly without separate crimp contacts or conventional screw tightening. This helps streamline connector assembly and servicing while maintaining a secure electrical interface for industrial machinery and automation systems.
The CDYF07 supports unprepared conductors from 0.14–2.5 mm² and prepared conductors with ferrules from 0.14–1.5 mm². With built-in silver-plated contacts, a compact 21.21 footprint and seven circuits plus PE, it provides an efficient solution where connection density, installation speed and serviceability are important.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated manufacturing systems.
- Industrial control, signal and auxiliary wiring.
- Compact machinery requiring detachable multipole connections.
