Why Choose the Ilme CDYM07 AXYR® Male Insert?

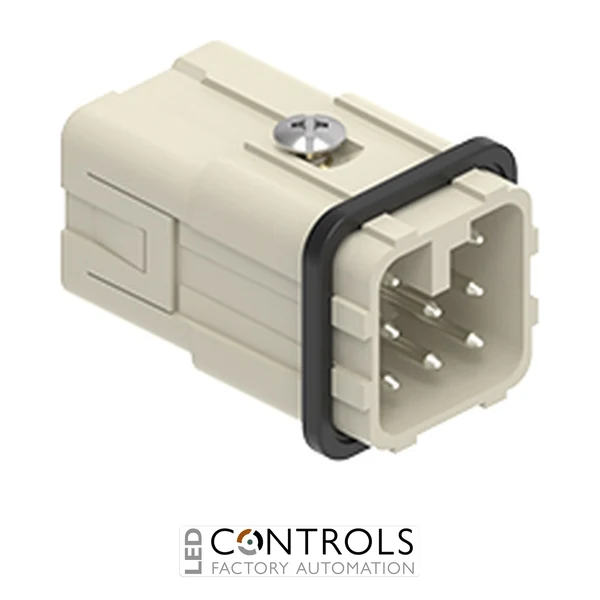

The Ilme CDYM07 is a compact 7-pole plus protective earth male connector insert from the Ilme CDY series, designed for dependable industrial multipole connections. It combines the compact size 21.21 format with Ilme's AXYR® high-density spring push-in terminal technology, providing fast conductor termination without conventional screw tightening or separate crimp contacts.
Rated at 10 A and 250 V, the CDYM07 features seven male poles plus protective earth and integrated turned silver-plated copper-alloy contacts. Its AXYR® connection system accepts unprepared conductors from 0.14–2.5 mm² and prepared conductors from 0.14–1.5 mm², making it suitable for a broad range of control, signal and auxiliary wiring.
Engineered in accordance with EN 61984 characteristics, the CDYM07 provides a 4 kV rated impulse withstand voltage, pollution degree 3 and a mechanical life of at least 500 mating cycles. Its durable polycarbonate body, UL 94 V-0 flammability rating and -40 °C to +125 °C operating temperature range make it well suited to machinery, automation and industrial control applications.
Key Advantages
- 7 poles plus protective earth in a compact size 21.21 insert.
- AXYR® spring push-in technology enables tool-less conductor connection.
- No separately purchased crimp contacts are required because the contacts are integrated into the insert.
- 10 A at 250 V rating suits industrial control, signal and auxiliary circuits.
- Accepts unprepared conductors from 0.14–2.5 mm².
- At least 500 mating cycles support repeated connection and servicing.
Key Features
- Ilme CDY series industrial connector insert.
- Male configuration with 7 poles + PE.
- AXYR® high-density spring terminal connection without tools.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Built-in turned silver-plated copper-alloy contacts.
- Unprepared conductor range of 0.14–2.5 mm².
- Prepared conductor range of 0.14–1.5 mm².
- Maximum wire diameter of 3.8 mm.
- IP20 protection without an enclosure.
- UL 94 V-0 polycarbonate insulating body.
- Mechanical life of at least 500 mating cycles.
Reliable AXYR® Push-In Connections for Compact Industrial Wiring
Ilme AXYR® technology provides a high-density spring push-in connection that allows prepared conductors to be connected directly to the insert without conventional screw tightening. The CDYM07 incorporates its contacts within the insert, eliminating the separate contact-selection and crimping operations associated with traditional crimp connector systems and helping streamline machine and panel assembly.
With seven poles plus protective earth in the compact size 21.21 format, the CDYM07 provides a space-efficient detachable interface for industrial wiring. When paired with the corresponding female insert and a compatible Ilme size 21.21 enclosure, it forms a robust connector solution suitable for equipment that requires reliable electrical connections together with convenient installation and servicing.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Compact control and signal connections.
- Machine-to-machine electrical interfaces.
- Control panels and electrical cabinets.
- Robotics and automated manufacturing systems.
- Modular machinery and production lines.
- OEM industrial equipment wiring.
