Why Choose the Ilme CDYM08 AXYR® Male Insert?

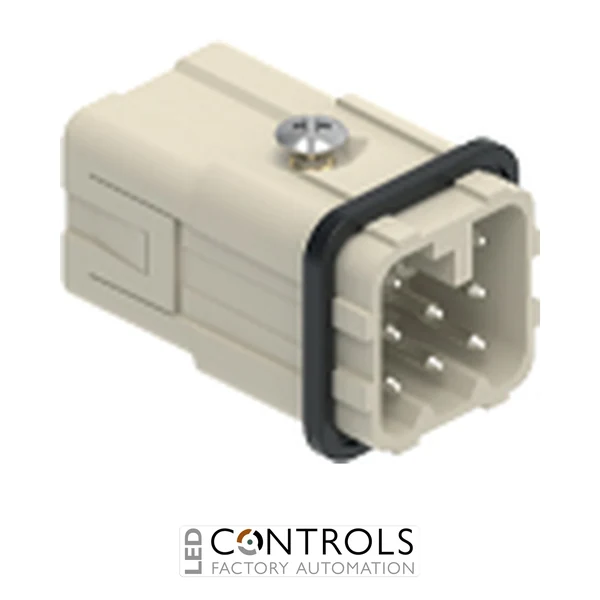

The Ilme CDYM08 is a compact 8-pole male connector insert from the Ilme CDY AXYR® series, designed for low-voltage multipole connections in industrial machinery, automation and control equipment. Its size 21.21 format combines eight contact positions with Ilme's high-density AXYR® spring push-in terminal technology.
Rated at 10 A with an electrical rating of 50 VAC / 120 VDC, the CDYM08 is intended for applications requiring multiple low-voltage circuits within a compact rectangular connector. The AXYR® system provides tool-less spring termination with integrated turned silver-plated contacts, removing the need for separately purchased crimp contacts.
The CDYM08 accepts unprepared conductors from 0.14–2.5 mm² and prepared conductors from 0.14–1.5 mm². With a 0.8 kV rated impulse withstand voltage, pollution degree 3, at least 500 mating cycles and an operating range from -40 °C to +125 °C, it provides a compact and serviceable connection solution for demanding industrial installations.
Key Advantages
- Eight-pole male insert provides a compact interface for multiple low-voltage circuits.
- AXYR® spring push-in technology enables tool-less conductor termination.
- No separate crimp contacts are required because the contacts are integrated into the insert.
- 10 A, 50 VAC / 120 VDC electrical rating for compatible low-voltage applications.
- Accepts unprepared conductors from 0.14–2.5 mm².

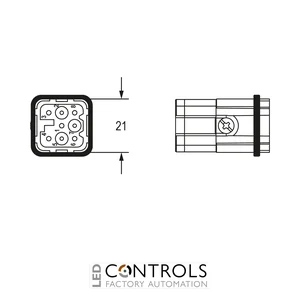

- Compact size 21.21 format integrates with compatible Ilme connector enclosures.
Key Features
- Ilme CDY series industrial connector insert.
- AXYR® high-density spring push-in connection.
- Male configuration with 8 poles.
- 10 A rated current.
- 50 VAC / 120 VDC rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Integrated turned silver-plated contacts.
- Unprepared conductor range of 0.14–2.5 mm².
- Prepared conductor range of 0.14–1.5 mm².
- 9–11 mm conductor stripping length.
- IP20 protection without enclosure.
- At least 500 mating cycles.
- UL 94 V-0 flammability classification.
Reliable AXYR® Push-In Connections for Low-Voltage Industrial Wiring
Ilme AXYR® technology combines high connection density with a spring push-in terminal system that allows conductors to be connected directly to the insert without conventional screw tightening. The integrated contacts also eliminate the separate contact-selection and crimping operations associated with traditional crimp inserts, helping simplify assembly and servicing.
With eight poles in the compact size 21.21 format, the CDYM08 is particularly suited to low-voltage circuits requiring several detachable connections in limited installation space. When paired with the corresponding female insert and a compatible Ilme enclosure, it forms a robust multipole interface for machinery, control systems and modular equipment.
Typical Applications
- Low-voltage industrial control circuits.
- Industrial machinery and production equipment.
- Factory automation systems.
- Sensor and actuator connections.
- Control and signal wiring.
- Machine-to-machine electrical interfaces.
- Robotics and automated manufacturing equipment.
- OEM and modular machinery connections.
