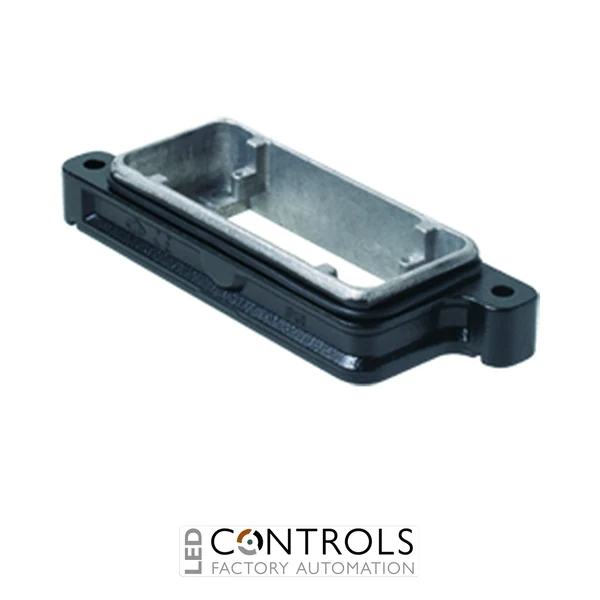

Why Choose the ILME CGI16 IP68 Bulkhead Mounting Housing?
The ILME CGI16 is a high-protection bulkhead mounting housing designed for demanding industrial connector installations where resistance to dust, water and harsh environmental conditions is essential. Part of the ILME CG IP68 series, it combines robust die-cast aluminium construction with a secure two-screw locking system.
Designed for size 77.27 ILME connector inserts, the CGI16 provides a fixed panel-mounted base for compatible multipole and modular connector assemblies. The housing is supplied without a cable entry and is intended to mate with compatible ILME IP68 hoods and accessories to create a secure, environmentally protected industrial connection.
When correctly assembled and locked with compatible components, the CGI16 provides IP66, IP68 and IP69 protection. Its rugged construction and wide −40 to +125 °C operating temperature range make it suitable for machinery, automation, transportation, energy and other industrial installations exposed to demanding environmental conditions.
Key Advantages
- High-protection IP66 / IP68 / IP69 industrial connector housing.
- Robust die-cast aluminium construction for demanding environments.
- Secure two-screw locking system for reliable connector closure.
- Designed for compatible size 77.27 ILME connector inserts.
- Bulkhead mounting configuration provides a secure fixed panel interface.
- Wide −40 to +125 °C operating temperature range.
Key Features
- ILME CG IP68 series enclosure.
- Bulkhead mounting housing configuration.
- Size 77.27.
- Two-screw closing system.
- IP66 / IP68 / IP69 degree of protection when correctly assembled.
- Die-cast aluminium housing body.
- Designed without cable entry for fixed panel mounting.
- Compatible with numerous ILME multipole and modular insert families.
- Suitable for high-density power, control and signal connections.
- Designed for demanding industrial and exposed environments.
High-Protection Connectivity for Demanding Industrial Environments
Industrial connector housings installed on machinery and control equipment must protect electrical interfaces from dust, moisture and environmental exposure while maintaining a secure mechanical connection. The ILME CGI16 combines a rugged metal enclosure with screw locking to provide dependable protection for compatible size 77.27 connector inserts.
The IP66, IP68 and IP69 protection capability of a correctly assembled CGI16 connector system makes it suitable for demanding installations where water ingress and contamination must be controlled. The large 77.27 insert format supports a wide range of ILME connector inserts, making the housing suitable for high-density power, control, signal and mixed industrial connections.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and machinery interfaces.
- Outdoor and environmentally exposed installations.
- Railway and transportation equipment.
- Renewable energy and wind power systems.
- Applications requiring high resistance to dust and water ingress.
