Why Choose the ILME CGMA16 Male Crimp Contact?

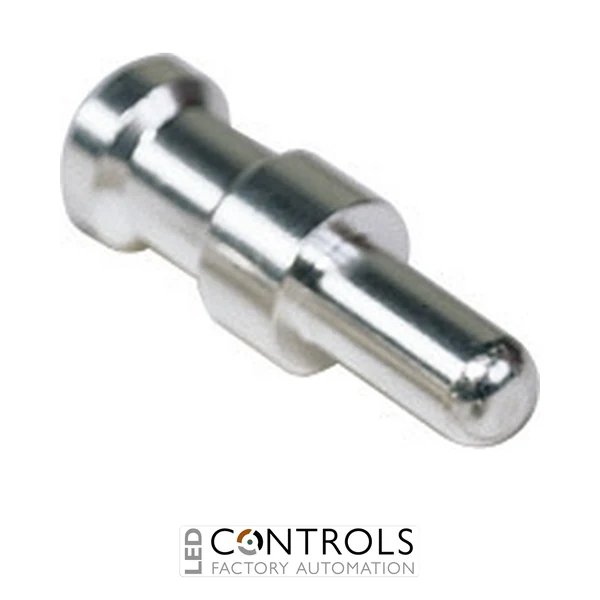

The ILME CGMA16 is a high-current male crimp contact designed for compatible ILME industrial connector systems. Part of the ILME CG series, it combines precision turned copper-alloy construction with a silver-plated contact surface for dependable electrical performance in demanding power connections.
Rated at 100 A, the CGMA16 is specifically designed for 16 mm² conductors, corresponding to AWG 6–5. Its crimp termination creates a secure electrical and mechanical connection when installed using suitable ILME-approved crimping equipment, making it well suited to high-current machinery, power distribution and industrial automation applications.
The CGMA16 is compatible with selected ILME 100 A connector inserts and MIXO modular systems, including high-current CX configurations. A specified conductor stripping length of 15 mm and precision contact dimensions support repeatable termination and reliable integration into heavy-duty industrial connector assemblies.
Key Advantages
- High 100 A current rating for demanding industrial power connections.
- Specifically designed for 16 mm² conductors.
- Compatible with AWG 6–5 cable sizes.
- Turned silver-plated construction provides dependable electrical contact performance.
- Robust copper-alloy contact body for industrial applications.
- Designed for compatible ILME CX and MIXO high-current connector systems.
Key Features
- ILME CG series high-current crimp contact.
- Male contact configuration.
- 100 A rated current.
- 16 mm² conductor cross-section.
- AWG 6–5 conductor compatibility.
- Turned silver-plated contact construction.
- Copper-alloy main material.
- 15 mm conductor stripping length.
- 5.5 mm conductor slot diameter.
- Crimp termination for secure high-current conductor connections.
- CSA and EAC certified.
Reliable High-Current Connectivity for Industrial Power Systems
High-current industrial connectors require contacts capable of carrying substantial electrical loads while providing secure conductor retention and consistent electrical performance. The ILME CGMA16 combines a precision turned copper-alloy body, silver-plated contact surface and crimp termination to provide a robust electrical interface for 16 mm² power conductors.
The CGMA16 can be used with compatible ILME high-current inserts, including selected CX 100 A and MIXO 100 A configurations. Correct conductor preparation with a 15 mm stripping length and the use of suitable ILME-approved crimping tools help produce a secure, repeatable termination for demanding industrial power applications.
Typical Applications
- Industrial machinery and machine-building systems.
- High-current industrial power connections.
- Factory automation and production equipment.
- Motor and drive power connections.
- Electrical power distribution systems.
- MIXO modular industrial connector assemblies.
- Renewable energy and heavy industrial equipment.
