Why Choose the ILME CHC10C Metal Protection Cover?

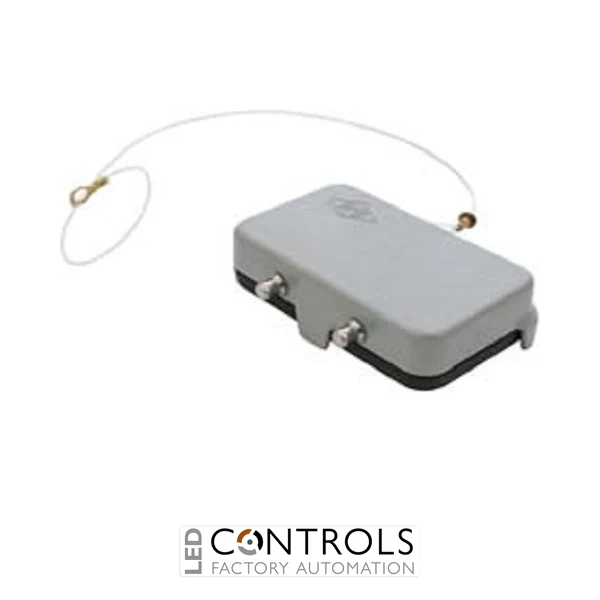

The ILME CHC10C is a robust metal protection cover with four pegs and gasket designed for compatible ILME industrial connector enclosures in size 57.27. Part of the ILME C-TYPE series, it protects an unmated connector interface against dust, water and environmental contamination in demanding industrial applications.
Manufactured from die-cast aluminium with a RAL 7040 grey finish, the CHC10C combines mechanical durability with an integrated sealing gasket. Its four-peg closing configuration is designed for compatible enclosures using two locking levers, while the incorporated loop provides convenient retention of the cover when the connector is in use.
The CHC10C provides an IP66 degree of protection when correctly fitted to a compatible enclosure. With an operating temperature range of −40 to +125 °C, it is suitable for machinery, automation equipment, control systems and other industrial installations where connector interfaces require reliable protection while disconnected.
Key Advantages
- Robust metal protection cover for industrial connector enclosures.
- Four-peg closing configuration for compatible two-lever enclosures.
- Integrated gasket supports reliable environmental sealing.
- IP66 protection when correctly fitted to a compatible enclosure.
- Durable die-cast aluminium construction.
- Integrated retaining loop helps keep the cover attached to the connector assembly.
Key Features
- ILME C-TYPE series protection cover.
- Size 57.27.
- Four locking pegs.
- Supplied with gasket.
- Supplied with retaining loop.
- IP66 degree of protection.
- Die-cast aluminium body.
- RAL 7040 grey finish.
- Designed for compatible enclosures with two locking levers.
- Wide −40 to +125 °C operating temperature range.
- Suitable for heavy-duty industrial connector applications.
Reliable Protection for Unmated Industrial Connectors
Industrial connector interfaces can be exposed to dust, moisture and contamination whenever equipment is disconnected. The ILME CHC10C provides a durable metal barrier over the exposed interface, while its integrated gasket supports an IP66 seal when the cover is correctly secured to a compatible enclosure.
The four-peg design is intended for compatible enclosures equipped with two locking levers, providing secure mechanical retention of the cover. Its die-cast aluminium body and wide operating temperature range make the CHC10C suitable for protecting connector systems used throughout industrial machinery, automation and production environments.
Typical Applications
- Protection of unmated industrial connector interfaces.
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Electrical control panels and machinery interfaces.
- Packaging and processing machinery.
- Material handling and automated production systems.
- Industrial installations requiring IP66 connector protection while disconnected.
