Why Choose the ILME CHCE10G Extreme Metal Cover?

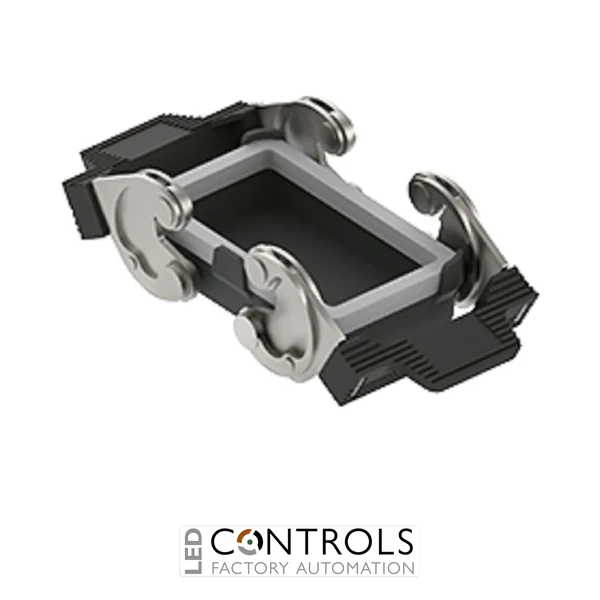

The ILME CHCE10G, manufacturer part number CHCE 10 G, is a heavy-duty metal protective cover with two locking levers and gasket designed for demanding industrial connector applications. Part of the ILME E-Xtreme series, it is manufactured for size 57.27 enclosures and provides a secure protective closure for compatible housings and hoods equipped with four locking pegs.
Manufactured from E-Xtreme aluminium, the CHCE10G is engineered for aggressive environments where conventional connector enclosures may be exposed to corrosion, moisture, dust and harsh operating conditions. The E-Xtreme treatment is designed to withstand 2,000 hours of salt spray testing according to EN ISO 9227, providing excellent resistance for demanding industrial and outdoor installations.
The cover incorporates two locking levers, a sealing gasket and retaining loop, providing secure closure and convenient retention when the connector is in use. When correctly assembled with compatible ILME components, the E-Xtreme enclosure system supports IP66 / IP67 / IP69 protection, while its broad -40 °C to +125 °C temperature range makes it suitable for challenging machinery, transport and infrastructure applications.
Key Advantages
- Heavy-duty E-Xtreme metal protective cover for aggressive industrial environments.
- Designed for size 57.27 ILME heavy-duty connector enclosures.
- Two locking levers provide secure engagement with compatible four-peg enclosures.
- Integrated sealing gasket helps maintain environmental protection.
- E-Xtreme construction withstands 2,000 hours of salt spray testing according to EN ISO 9227.
- Integrated retaining loop keeps the cover attached when opened.
Key Features
- ILME E-Xtreme series.
- Size 57.27 enclosure format.
- Two-lever locking configuration.
- Designed for compatible enclosures with four locking pegs.
- Integrated gasket and retaining loop.
- E-Xtreme aluminium construction for aggressive environments.
- 2,000 hour salt spray resistance tested according to EN ISO 9227.
- E-Xtreme enclosure system supports IP66 / IP67 / IP69 protection when correctly assembled.
- Type 4 / 4X / 12 enclosure capability within compatible configurations.
- Operating temperature range from -40 °C to +125 °C.
- Designed for a mechanical life of at least 500 cycles within the compatible enclosure system.
Reliable Connector Protection for Aggressive Environments
Industrial connectors installed outdoors or in chemically and environmentally aggressive locations require more than basic mechanical protection. The ILME E-Xtreme enclosure system is engineered specifically for these conditions, combining robust metal construction with enhanced corrosion resistance capable of withstanding extended salt spray exposure.
The CHCE10G complements this protection with two secure locking levers, an integrated gasket and a retaining loop. Its size 57.27 format makes it suitable for compatible ILME connector systems, including configurations using CNE, CSE, CSH, CCE, CX and MIXO inserts, providing a versatile protective solution for demanding industrial connectivity.
Typical Applications
- Industrial machinery and automation equipment.
- Outdoor heavy-duty connector installations.
- Marine and coastal industrial environments.
- Transport and infrastructure equipment.
- Manufacturing and processing machinery.
- Corrosive, humid and high-pressure washdown environments.
