Why Choose the ILME CHCS24 EMC Metal Cover?

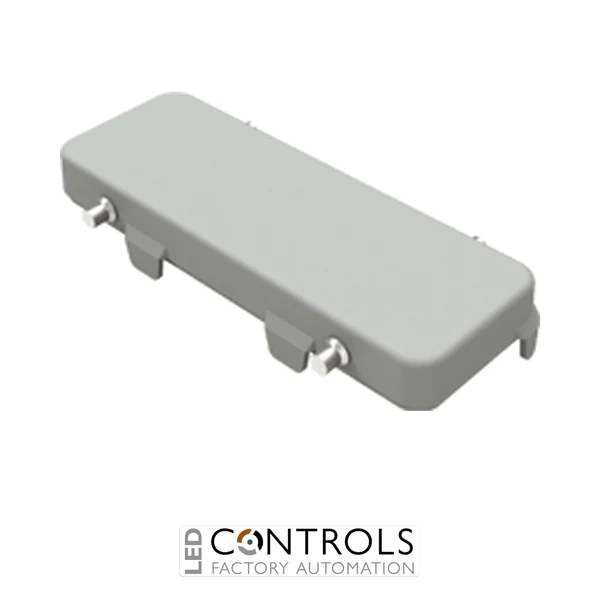

The ILME CHCS24, manufacturer designation CHCS 24, is a robust EMC metal protection cover for heavy-duty industrial connector enclosures. Designed for ILME size 104.27 connector systems, it features four locking pegs and is intended for compatible fixed enclosures equipped with two locking levers.
As part of ILME's EMC enclosure range, the CHCS24 is designed for applications requiring enhanced electromagnetic compatibility in addition to mechanical and environmental connector protection. Its conductive aluminium construction and EMC-oriented surface treatment help maintain effective shielding around compatible connector assemblies, making it particularly suitable for electrically noisy industrial environments.
The CHCS24 is manufactured from die-cast aluminium and incorporates an eyelet for convenient retention of the cover. With a size 104.27 format, IP66 protection when correctly fitted to a compatible enclosure and an operating temperature range of -40 °C to +125 °C, it provides dependable protection for industrial automation, machinery and screened electrical connection systems.
Key Advantages
- Specially designed EMC protection cover for industrial connector systems.
- Four locking pegs for secure engagement with compatible two-lever enclosures.
- Large size 104.27 format for compatible ILME heavy-duty connectors.
- Die-cast aluminium construction provides robust mechanical protection.
- EMC construction supports electromagnetic shielding continuity in compatible assemblies.
- IP66 protection when correctly installed and locked to a compatible enclosure.
- Integrated eyelet provides a convenient means of retaining the cover.
Key Features
- ILME EMC series connector protection cover.
- Size 104.27 enclosure format.
- Four-peg locking configuration.
- Designed for enclosures equipped with two locking levers.
- Die-cast aluminium construction.
- Special conductive treatment for EMC applications.
- Supplied with eyelet.
- IP66 degree of protection when correctly assembled.
- 104 × 27 mm insert centre distance.
- Wide -40 °C to +125 °C operating temperature range.
EMC Protection for Industrial Connector Systems
Electromagnetic compatibility is particularly important in machinery and automation systems containing variable speed drives, motors, switching equipment and sensitive control electronics. EMC connector enclosures help maintain shielding continuity around electrical interfaces, reducing the potential for electromagnetic interference to enter or leave screened cable and connector systems.
The ILME CHCS24 combines the mechanical protection of a heavy-duty metal connector cover with construction specifically intended for EMC applications. When used with compatible ILME EMC housings, hoods and suitable EMC cable glands, it contributes to a comprehensive screened connector installation while protecting the exposed interface whenever the mating connector is disconnected.
Typical Applications
- EMC-sensitive industrial connector installations.
- Variable speed drive and motor connection systems.
- Industrial machinery and factory automation.
- Robotics and automated production equipment.
- Control and instrumentation systems.
- Screened power, signal and data connector assemblies.
- Protection of disconnected size 104.27 connector interfaces.
