Why Choose the ILME CHCW06LG Metal Cover?

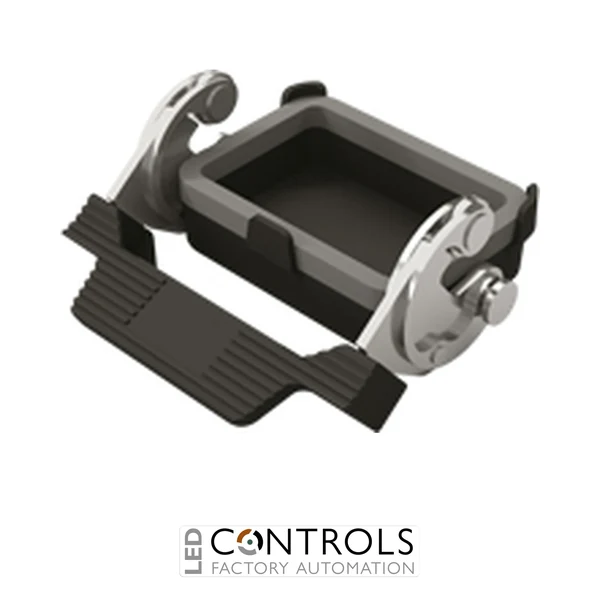

The ILME CHCW06LG, manufacturer part number CHCW 06 LG, is a heavy-duty W-TYPE metal protective cover with one locking lever for size 44.27 rectangular connector enclosures. Designed for compatible enclosures equipped with two locking pegs, it provides a secure protective closure for industrial connector interfaces when they are disconnected.
Part of the ILME W-TYPE series for aggressive environments, the CHCW06LG uses a robust aluminium enclosure construction with specialised surface treatment for enhanced resistance to corrosion and chemical exposure. The W-TYPE design provides increased salt-spray resistance and is suitable for demanding machinery, process equipment and outdoor industrial installations.
The cover incorporates one locking lever, a sealing gasket and retaining loop. When correctly assembled with compatible W-TYPE enclosure components, the system supports IP65 / IP66 / IP69 protection and Type 12 / 4 / 4X enclosure ratings, with an operating temperature range from -40 °C to +125 °C.
Key Advantages
- Heavy-duty W-TYPE metal protective cover for aggressive industrial environments.
- Designed for size 44.27 ILME heavy-duty connector enclosures.
- One locking lever provides secure engagement with compatible two-peg enclosures.
- Integrated sealing gasket helps maintain environmental protection.
- W-TYPE aluminium construction provides enhanced resistance to corrosion and chemical exposure.
- Integrated retaining loop helps keep the cover attached when opened.
Key Features
- ILME W-TYPE series for aggressive environments.
- Size 44.27 enclosure format.
- One-lever locking configuration.
- Designed for compatible enclosures with 2 pegs and without gasket.
- Integrated gasket and retaining loop.
- Robust W-TYPE aluminium construction.
- IP65 / IP66 / IP69 protection capability with correctly assembled compatible components.
- Type 12 / 4 / 4X enclosure capability within compatible configurations.
- Operating temperature range from -40 °C to +125 °C.
- Mechanical life of at least 500 cycles within the compatible enclosure system.
Reliable Protection for Aggressive Industrial Environments
The ILME W-TYPE range is designed for industrial applications exposed to particularly aggressive external conditions. Its specialised aluminium enclosure treatment improves corrosion resistance, while the protective coating provides additional defence against environmental and chemical exposure compared with conventional industrial enclosure solutions.
The CHCW06LG combines this W-TYPE construction with a secure single-lever locking mechanism and integrated gasket. This makes it a dependable protective solution for compatible size 44.27 connector systems used in manufacturing, process automation, infrastructure and other environments where reliable sealing and corrosion resistance are important.
Typical Applications
- Industrial machinery and automation equipment.
- Heavy-duty rectangular connector assemblies.
- Outdoor industrial installations.
- Manufacturing and process equipment.
- Material handling and production machinery.
- Corrosive, humid and aggressive industrial environments.
