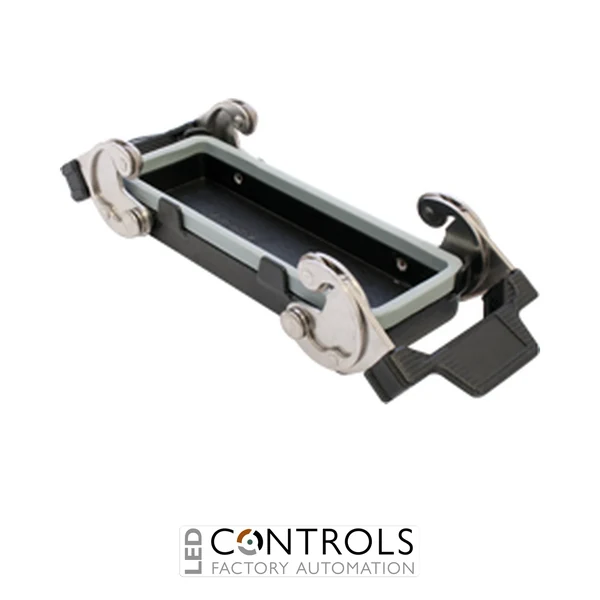

Why Choose the Ilme CHCW24 W-TYPE Cover?
The Ilme CHCW24 is a robust metal protective cover with four pegs designed for heavy-duty industrial connector systems used in harsh and aggressive environments. As part of the specialised Ilme W-TYPE series, it is manufactured for size 104.27 enclosures and helps protect exposed connector interfaces against demanding environmental conditions when correctly fitted and secured.
Manufactured from die-cast aluminium alloy, the CHCW24 combines mechanical durability with enhanced environmental resistance. The W-TYPE range uses specialised surface treatment and an epoxy powder coating to improve resistance to corrosion, salt spray and a range of aggressive substances, making it particularly suitable for challenging industrial installations.
With a four-peg configuration for double-latch enclosures, a size 104.27 format and an operating temperature range of -40 °C to +125 °C, the CHCW24 provides dependable protection for industrial machinery, automation systems and equipment exposed to harsh conditions. An integrated eyelet also provides a convenient means of retaining the cover when it is removed from the connector enclosure.
Key Advantages
- Heavy-duty W-TYPE metal protective cover for aggressive environments.
- Four-peg closing arrangement designed for compatible double-latch enclosures.
- Robust die-cast aluminium alloy construction.
- Specialised surface treatment and epoxy powder coating for enhanced environmental resistance.
- Wide -40 °C to +125 °C operating temperature range.
- Designed specifically for size 104.27 industrial connector enclosures.
Key Features
- Ilme W-TYPE series for aggressive environmental conditions.
- Size 104.27 connector enclosure format.
- Four closing pegs for double-latch enclosure systems.
- Durable die-cast aluminium alloy body.
- Enhanced resistance to corrosion, salt spray and aggressive substances.
- Protection levels up to IP65, IP66 and IP69 depending on the complete assembled enclosure configuration.
- Operating temperature range of -40 °C to +125 °C.
- Integrated eyelet for convenient cover retention.
Reliable Connector Protection for Aggressive Environments
Protective covers such as the Ilme CHCW24 help shield heavy-duty connector interfaces when they are not connected, reducing exposure to dust, water and environmental contaminants. The four-peg configuration is designed for use with compatible double-latch enclosures, providing a practical protective solution for machinery and electrical equipment operating in demanding locations.
The Ilme W-TYPE range is specifically developed for industrial applications exposed to particularly aggressive external conditions. Enhanced surface treatment and epoxy powder coating improve resistance to corrosion and salt spray compared with conventional enclosure finishes, making the CHCW24 suitable for installations where environmental durability is a priority.
Typical Applications
- Industrial machinery operating in harsh environments.
- Outdoor and exposed automation installations.
- Marine and corrosion-prone industrial environments.
- Manufacturing and processing equipment.
- Heavy-duty multipole connector assemblies.
- OEM machinery requiring enhanced environmental protection.
