Why Choose the ILME CHI06YC Central Lever Bulkhead Housing?

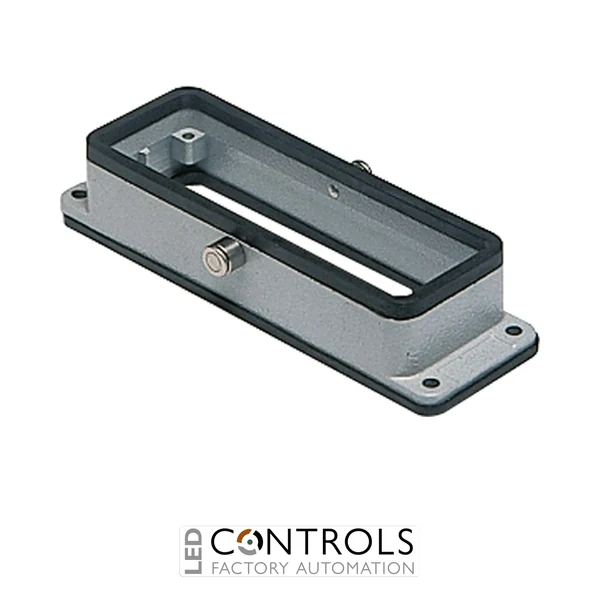

The ILME CHI06YC, manufacturer part number CHI 06 YC, is a heavy-duty bulkhead mounting housing with two locking pegs for industrial rectangular connectors. Part of the ILME CENTRAL LEVER series, it is designed for size 44.27 connector inserts and provides a secure fixed mounting point for compatible central-lever hoods.
Designed for panel and bulkhead installation, the CHI06YC has no cable entry and uses two locking pegs that engage with the central locking lever of a compatible mating hood. This central-lever system provides straightforward connector engagement and secure mechanical retention for machinery, automation and industrial electrical installations.
The CHI06YC supports IP65 / IP66 / IP69 protection when correctly assembled with compatible ILME components and operates across a wide temperature range from -40 °C to +125 °C. Its NBR sealing gasket and robust enclosure construction make it a dependable choice for industrial connector interfaces exposed to dust, water and demanding operating conditions.
Key Advantages
- Heavy-duty bulkhead mounting housing for fixed industrial connector installations.
- Designed for size 44.27 ILME rectangular connector inserts.
- Two locking pegs for secure engagement with compatible central-lever hoods.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide operating temperature range from -40 °C to +125 °C.
- Compact fixed-mounting solution for machinery, control panels and automation equipment.
Key Features
- ILME CENTRAL LEVER series.
- Size 44.27 enclosure format.
- Bulkhead mounting housing configuration.
- Two-peg closing configuration.
- Designed for compatible central locking lever hoods.
- No cable entry for fixed bulkhead installation.
- NBR sealing gasket.
- RAL 7040 grey finish.
- IP65 / IP66 / IP69 degree of protection.
- Operating temperature range from -40 °C to +125 °C.
- Suitable for compatible CDD, CDS, CDSH, CNE, CSE, CSH, CCE, CSS, CT, CTSE, CQE and MIXO inserts.
Secure Central-Lever Connectivity for Industrial Equipment
ILME CENTRAL LEVER enclosures provide an alternative locking arrangement for heavy-duty rectangular connectors, using a centrally positioned lever on the mating hood to engage with the housing pegs. The CHI06YC supplies the fixed bulkhead side of this system, with two robust pegs positioned for reliable engagement with the corresponding central locking mechanism.
The size 44.27 format supports a broad range of compatible ILME inserts, making the CHI06YC suitable for power, control, signal and mixed connector configurations. Its high degree of environmental protection and wide operating temperature range make it particularly useful for industrial machinery and automation installations where reliable detachable connections are required.
Typical Applications
- Industrial machinery and automation equipment.
- Control cabinets and electrical panels.
- Manufacturing and production machinery.
- Material handling and processing equipment.
- Heavy-duty rectangular connector assemblies.
- Fixed equipment interfaces using central-lever connector locking.
